Windows Internals: Demystifying The Modern Windows Kernel Pool Allocator
Introduction
In the previous post, I started my path into Windows kernel exploitation. The next step I wanted to tackle was the dynamic allocator.
This part has always interested me much more than the stack. Ever since I studied ptmalloc in Linux, heap internals have been one of my favorite parts of low-level systems. Heap bugs and heap exploitation feel more interesting to me than stack-related stuff because the model is usually more complex, less linear, and much more fun to reason about.
To keep moving forward in this series, I had to learn how dynamic allocation works on Windows, especially in the kernel. While doing that, I found a lot of excellent material: papers, talks, reversing notes, blog posts, and research from people who have clearly spent a huge amount of time understanding this topic. The quality of that work is impressive, and a big part of this post exists because of it.
The problem I ran into is that the information is scattered. You can find good material on the classic pool allocator, other material on the segment heap, other material on the modern kernel pool, and separate documentation for the public APIs, but there is no single resource that puts the whole picture together in a way that is easy to learn from.
This post is my attempt to do that. It is an attempt to gather the most useful public material I found, connect it properly, and turn it into one coherent learning resource. Part of the goal is to help other people studying the topic. The other part is forcing myself to understand it well enough to explain it clearly.
This is not an exploitation guide and it is not a catalog of primitives. It is a technical post about how the modern Windows kernel pool allocator should be understood: how requests are expressed at the API boundary, how allocations are routed internally, which allocator components actually own them, which metadata still matters locally, and why older pool intuition stops being enough on modern systems. As a result, this post is intentionally theoretical. The more practical side of this topic will be covered in future posts.
I also want to be explicit about the tone of the post. I am not presenting this as some final word on the allocator from someone who reversed every path by hand. I am a student trying to build the best technical model I can from strong public sources, structure layouts, and careful comparison across them. Throughout the post, I try to separate three things clearly: public documentation, my own investigation, and build-specific interpretations where the layouts suggest something but the runtime path has not yet been fully re-verified by me.
That distinction matters because I want this post to be useful, but I also want it to be honest. If something is well supported by documentation or public reversing literature, I will say so directly. If something is only the safest reading of a layout, I will treat it that way. That is the standard I am aiming for in the rest of the article.
I will be targeting Windows 11 25H2, but this is not a “what changed in 25H2” article. The real boundary that matters here is the shift from the classic pool model to the modern heap-backed design. Because of that, older material still matters a lot. Even when it no longer describes the current allocator directly, it still explains the vocabulary, the older mental model, and the assumptions that modern Windows moved away from. To understand the current design properly, you need both sides: the older pool model and the newer heap-backed one.
The structure layouts shown in this post come from Windows 11 25H2. Some of the behavior described here, however, comes from public reversing work on earlier modern builds, especially RS5-, 19H1-, and 2021-era research. So when I describe allocator behavior, I am sometimes combining 25H2 layouts with behavior explained in earlier public work. Unless I say otherwise, that should be read exactly as it is: a careful synthesis, not a claim that every runtime detail was personally re-verified on a live 25H2 target.
The post is organized as a replacement of mental models. It starts with the minimum memory-manager context needed for the allocator to make sense. Then it builds the classic pool model, because that is still the baseline most people inherit. After that, it moves into the modern heap-backed design and explains how allocations should be reasoned about today.
If you already know the classic pool allocator, the early sections will probably go faster. But skipping them completely usually makes the later sections harder to follow, because most of the confusion comes from carrying the old model too far, not from failing to remember it.
Finally, this post is also intentionally limited in scope. I am not trying to catalog every historical primitive, every mitigation branch, or every build-specific edge case. The goal is narrower and more useful: to build a clean technical model of the allocator and explain it as directly as possible.
That said, let’s dive into this wonderful piece of the Windows kernel!
Part I — Laying the groundwork
Pool Types And The Basic Contract Of Kernel Dynamic Memory
The easiest way to frame the minimum background is through the two pool types that have defined Windows kernel allocation from the beginning: paged pool and nonpaged pool. Both are kernel-mode heaps created by the memory manager in system space, and both are used to satisfy dynamic allocations made by kernel components. The difference between them is not who owns the memory, but what guarantee the system is making about whether that memory must already be resident when it is touched.
Pool memory lives in the system portion of the virtual address space. It is not a private heap owned by one process; it is shared kernel infrastructure. That matters because the allocator has to serve callers running under very different constraints. Some can block and some cannot. Some need quota accounting, meaning the allocation must be charged against a tracked budget. Some need alignment guarantees. Some need memory that must never become executable. So even before looking at internals, a pool allocation is already a request for bytes under a particular set of rules.

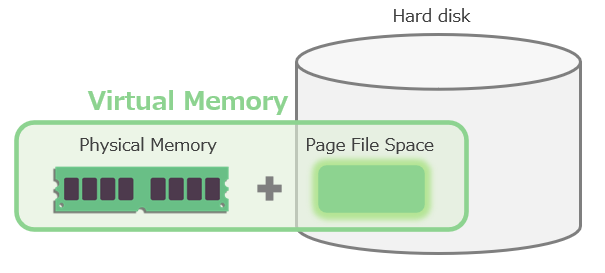

That pool still sits on top of ordinary page-based virtual memory. The kernel may return a sub-page chunk to the caller, but underneath it is still reserving address space, committing pages, mapping them, and recycling them. A reserved range is just address space the allocator has set aside. A committed range is one for which backing memory is actually available. Later sections will introduce structures such as segments, subsegments, and range descriptors, but all of them still live on top of that same page-granular substrate.
At a high level, the main distinction to keep in mind is this:
| Pool type | What it means |
|---|---|
Nonpaged pool | System virtual memory whose backing is guaranteed to stay resident in physical memory, so it can be accessed even in contexts where faults are not acceptable, including any IRQL. |
Paged pool | System-space virtual memory whose backing may be paged in and out by the system. It is still kernel memory and is accessible from any process context, but it is only suitable when the code touching it can tolerate faults. |
The split between pageable and nonpageable memory comes directly from those rules. A page fault happens when the accessed virtual page is not immediately resident and the system has to do more work before execution can continue. Some kernel code can tolerate that. Some cannot. If code may run in a context where a fault cannot be serviced safely, the memory it touches must already be resident. That is why nonpaged pool exists, and why the paged versus nonpaged distinction survives every allocator redesign. Device drivers that do not need to access a buffer under those stricter conditions can use paged pool instead.
The rule is enforced in practice through IRQL. IRQL, or Interrupt Request Level, is the priority model Windows uses inside the kernel. At higher IRQLs, code is allowed to do less: it cannot freely block, sleep, or wait for pageable memory to be brought in. For the purposes of this post, the important rule is simple: code that may run at DISPATCH_LEVEL (2) or above must not depend on pageable memory. That is the concrete reason nonpaged pool is required. Paged pool is still kernel memory, and it is still in system space, but it is only appropriate when the access pattern stays below those constraints.
NUMA adds another constraint. NUMA stands for Non-Uniform Memory Access. On a NUMA system, memory is physically closer to some processors than to others, so access cost is not uniform. Windows tries to preserve that locality when possible, and both the classical and modern pool designs reflect that through per-node state. This matters because the pool is shaped not only by correctness and hardening, but also by contention, scaling, and placement.
That is enough context to fix the basic split. Once that is clear, the rest of the vocabulary becomes much easier to place. In Windows kernel terminology, “pool memory” does not describe a single uniform bucket of dynamic memory. It is a family of allocation classes exposed through a common model. Some of those classes are central to everyday kernel behavior, and some are more specialized, but they all exist because the kernel is trying to express different promises about the memory being returned.
The first refinement is that nonpaged memory is no longer thought of as one undifferentiated class. On current systems, the normal expectation is that nonpaged allocations should be non-executable. In the older POOL_TYPE vocabulary that usually appears as NonPagedPoolNx, while in the newer flag-based model it is expressed through POOL_FLAGS. That shift matters because it makes something very explicit: a pool request is not just asking for space, but for space with a particular residency and protection profile.
From there, several other names appear in the literature, and it is worth fixing what each of them means before the article becomes more structural. Session pool is not a third everyday replacement for paged and nonpaged pool so much as a session-scoped variant used where memory lifetime and visibility are tied to a particular logon session rather than to the system as a whole. Special pool is different again: it is not a general-purpose pool class, but a debugging and verification mechanism that deliberately changes allocation behavior so that misuse becomes easier to detect. In other words, both are real, but neither should be read as part of the same primary split as paged versus nonpaged pool.
Something similar happens with terms such as big pool and large allocation. They do not describe a different semantic contract in the same way that paged and nonpaged do. Instead, they point to requests that are large enough to stop looking like ordinary small pool chunks and to be handled differently by the allocator. That distinction will matter later when the post reaches segment allocation and large allocations, but the useful point here is simply that size-based handling categories are not the same thing as pool types.
Secure pool also belongs in that second group of names that are important but easy to misplace too early. It refers to pool memory with stronger isolation and bookkeeping requirements, not to a third basic alternative to paged and nonpaged memory. The same is true of later distinctions such as private pools and special heaps. They matter a lot, but they sit on top of the basic pool contract rather than replacing it.
Taken together, these names show what a pool request really is, the caller describing the kind of memory it needs: paged or nonpaged, executable or NX, ordinary or special, quota-charged or not, session-scoped or system-wide. Only after that contract is fixed does the allocator decide how to implement it internally.
The Public API Surface Seen By Drivers
Once the pool is viewed as a contract rather than as a raw chunk allocator, the public API surface becomes much easier to read.
Historically, drivers interacted with the pool through routines such as ExAllocatePool, ExAllocatePoolWithTag, ExAllocatePoolWithQuotaTag, and related variants built around the older POOL_TYPE model. That older interface still matters because a large amount of kernel code, debugger output, and exploit literature continues to speak in that vocabulary.
On modern Windows, the public surface has shifted toward ExAllocatePool2, ExAllocatePool3, and ExFreePool2. The important change is not just that the function names are newer. It is that the request is no longer framed mainly as “allocate from this pool type,” but as “allocate memory with these properties.”
Because these routines will keep appearing throughout the rest of the article, it is useful to see their shape once up front:
1
2
3
4
5
DECLSPEC_RESTRICT PVOID ExAllocatePool2(
POOL_FLAGS Flags,
SIZE_T NumberOfBytes,
ULONG Tag
);
1
2
3
4
5
6
7
DECLSPEC_RESTRICT PVOID ExAllocatePool3(
POOL_FLAGS Flags,
SIZE_T NumberOfBytes,
ULONG Tag,
PCPOOL_EXTENDED_PARAMETER ExtendedParameters,
ULONG ExtendedParametersCount
);
1
2
3
4
5
6
VOID ExFreePool2(
PVOID P,
ULONG Tag,
PCPOOL_EXTENDED_PARAMETER ExtendedParameters,
ULONG ExtendedParametersCount
);
The exact C types are not especially important yet. What matters is the shape of the interface. In the common case, the caller expresses three things: the properties of the memory through Flags, the requested payload size through NumberOfBytes, and a Tag that identifies the allocation for tooling and debugging. ExAllocatePool3 keeps the same model, but adds an extensible parameter array for cases where the contract needs to carry more metadata.
The most visible change is the move from POOL_TYPE to POOL_FLAGS. In the older model, the request was centered on one pool type and a set of conventions layered around it. In the newer one, the request is described directly as a group of attributes. Paged versus nonpaged memory is still there, but it now lives in the same vocabulary as other properties such as quota charging, cache alignment, requests for special pool, exception-on-failure behavior, or opting out of default zero-initialization.
ExAllocatePool2 is the standard modern entry point. The caller supplies the flags, the size, and a non-zero tag. A pool tag is a four-byte identifier used by tools such as WinDbg or PoolMon to track who is allocating what. The big difference between this API and the deprecated ones mentioned early is that, in this newer version, returned memory is zero-initialized by default unless the caller explicitly asks otherwise. Microsoft also documents the IRQL rule at this layer: callers must be at IRQL <= DISPATCH_LEVEL, and callers running at DISPATCH_LEVEL must request nonpaged memory.
ExAllocatePool3 does not change that story. It simply turns the same contract into an extensible form. On the free side, ExFreePool2 does the analogous job for cases where freeing an allocation needs more metadata than the classic free routines were designed to carry. That becomes especially relevant later when secure pool enters the picture, but the broader point is already visible here: the public API is describing and managing allocation contracts, not exposing allocator internals.
That last point is worth making explicit before moving on. The API does not let the caller choose the backend (which we will be explaining soon).The caller asks for a kind of memory. The allocator decides how to satisfy that request.
Part II — Classics never die
The Legacy Pool Model And Why It Was So Readable
Before the heap-backed design entered the picture, the pool was usually understood as a page-carving allocator with local metadata and explicit free lists. That is the model described in the older literature, especially in the Windows 7 era material that shaped a lot of debugger habits and exploitation terminology. Some details changed across versions and architectures, but the core picture was stable enough that the pool was usually explained through three pieces: a POOL_DESCRIPTOR that owned allocator state, a POOL_HEADER in front of each chunk, and a set of size-based lists that controlled reuse.
POOL_DESCRIPTOR was the allocator-side anchor for one pool instance, not for one allocation. In practice, the system kept different descriptors for different pool classes and locality domains. The descriptor held the state needed to manage free chunks, especially the array of free-list heads traditionally referred to as ListHeads, with one list per size bucket. It also carried related bookkeeping, including delayed-free state often described in the older literature as PendingFrees, where some frees could be held temporarily instead of being returned immediately to the ordinary lists.
Small allocations lived inside ordinary pool pages. The allocator would take one or more pages and carve them into variable-sized chunks. Each chunk began with a POOL_HEADER, and the pointer returned to the caller landed just after that header.
1
2
3
4
5
6
+-------------+------------------+-------------+------------------+-------------+------------------+
| POOL_HEADER | allocated bytes | POOL_HEADER | free chunk body | POOL_HEADER | allocated bytes |
+-------------+------------------+-------------+------------------+-------------+------------------+
^
|
pointer returned by ExAllocatePool*
That local layout is the first reason the classical pool was so readable. If a page was visible, the allocator’s view of memory was often visible too.
When a chunk became free, part of its body stopped being user data and started being reused by the allocator itself:
1
2
3
+-------------+------------------------+
| POOL_HEADER | allocator linkage |
+-------------+------------------------+
Here, allocator linkage simply means the list pointers or similar cache-link fields that the allocator writes into the free chunk body so it can chain that chunk into a freelist or a lookaside cache. In other words, a free chunk was not just unused space. It was also an active allocator object carrying the metadata needed to be found and reused later.
The POOL_HEADER mattered because it let the allocator interpret the chunk in place. In the classical model, fields such as the current block size and the size of the previous block were especially important because the free path tried to reduce fragmentation by coalescing neighboring free chunks. If the allocator could tell, from the current header and adjacent metadata, that bordering chunks were also free, it could merge them into a larger free block instead of keeping the page split into smaller and smaller pieces.
The ordinary small-allocation path followed directly from that design. A request came in through routines such as ExAllocatePoolWithTag. After rounding the size to allocator granularity and accounting for the header, the kernel first tried the fast path for hot small allocations: the lookaside lists. These were lightweight caches, typically implemented as singly linked lists, meant to make repeated allocations of the same rough size cheap. If the request could not be satisfied there, the allocator fell back to the descriptor’s ListHeads, searched for a free chunk of the right size or larger, split it if necessary, and returned the requested piece. If no suitable chunk existed, the allocator had to request fresh pool pages from lower layers and carve new chunks out of them.
The free path mirrored that structure. A small chunk might go back into a lookaside list first, depending on its size and the state of the cache. Otherwise, the allocator used the header to recover the chunk’s size information, locate the right descriptor, return the chunk to the ordinary free lists, and try to coalesce with free neighbors. Much of the allocator’s behavior could therefore be reconstructed by walking the page and reading the metadata immediately around the chunk.
Allocations larger than a page already sat a little outside that world. They were handled through the large or big pool path, where the allocator dealt more directly with whole pages rather than with ordinary sub-page chunks. Even in the classical design, that difference mattered: small-chunk management and large page-backed allocation already behaved like related but distinct regimes.
That is the real reason the old literature feels so direct. The classical pool rewarded a local style of reasoning. A page dump, a few chunk headers, and some free-list state were often enough to tell a useful story about adjacency, reuse, coalescing, and corruption. The allocator did have global state, but the local picture was rich enough that it often felt self-explanatory.
Where The Classical Picture Stops Being Enough
The main mistake at this point would be to imagine the modern kernel pool as the classical allocator with a few mitigations layered on top. Hardening did change part of the picture, but the deeper change was architectural. The pool stopped being easiest to understand as a local free-list allocator centered on chunk headers, and started being easier to understand as a pool-facing interface backed by several allocator components.
That change is easy to underestimate because the public face of the pool still looks familiar. Drivers still allocate pool memory. Pool tags still exist. Paged and nonpaged semantics still exist. Large allocations still sit apart from ordinary small chunks. Even POOL_HEADER survives (more or less). What changed is not that the old vocabulary disappeared, but that it stopped being enough to explain ownership, reuse, and layout by itself.
In the classical model, the natural instinct was to start from the chunk and work outward. Look at the page, find the header, inspect the neighbors, infer the relevant freelist, and reconstruct allocator state from what is physically nearby. That instinct worked because so much of the allocator’s truth really was local. In the modern design, that is no longer a reliable default. A chunk may still have a local header, but the structure that governs it may live elsewhere, and the path that will reuse it may depend on a wider allocator context rather than on one nearby page.

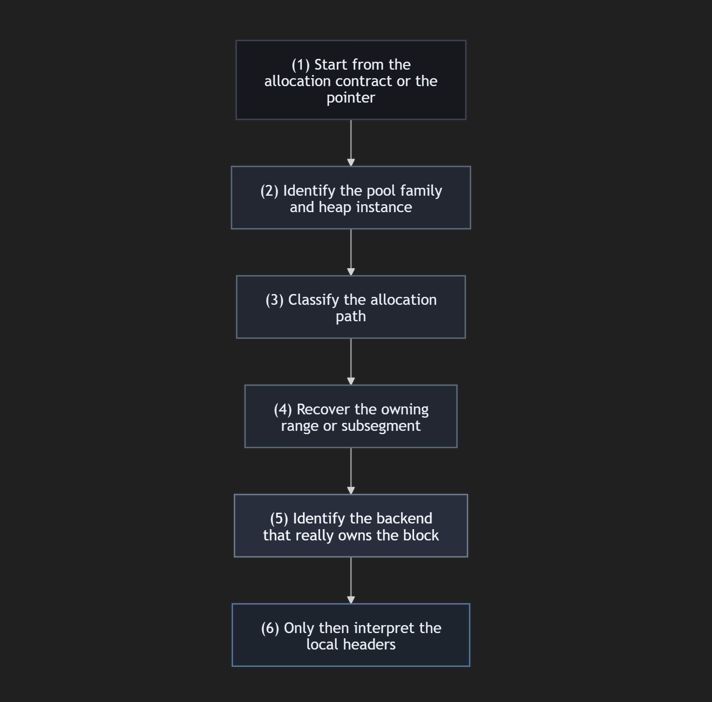

This is where the guiding question changes. In the classical pool, a natural first question was: what does this page look like? In the modern pool, the more useful one becomes: which allocator component owns this allocation? That is the real break. Once the answer is no longer encoded mainly in the immediate page around the chunk, the old habit of reading memory locally stops being enough.
The effects show up in several directions at once. Small allocations are no longer explained primarily through one set of classical free lists. Requests can be routed into different internal paths depending on size and other properties. Metadata that used to be immediately legible may now be indirect, encoded, or split across a wider structure. Looking at one page in isolation can still be useful, but it often no longer tells the whole story.
The classical model still matters, because it explains the language that survived into modern Windows and because many visible fields still descend from that older world. But from this point on, a nearby header is no longer the whole model, and a pool page is no longer the whole arena that matters.
Part III — The Heap-Backed Architecture
A Bird’s-Eye View Of The Heap-Backed Pool
The modern pool becomes much easier to understand once it is treated as a layered system rather than as one allocator with a more complicated header. The caller still asks for pool memory, and the public contract still speaks in pool terms, but the machinery underneath no longer behaves like one classical free-list engine. A request first arrives as a pool contract, then gets associated with the right pool-facing heap, and only after that is routed into the backend that will actually own it.

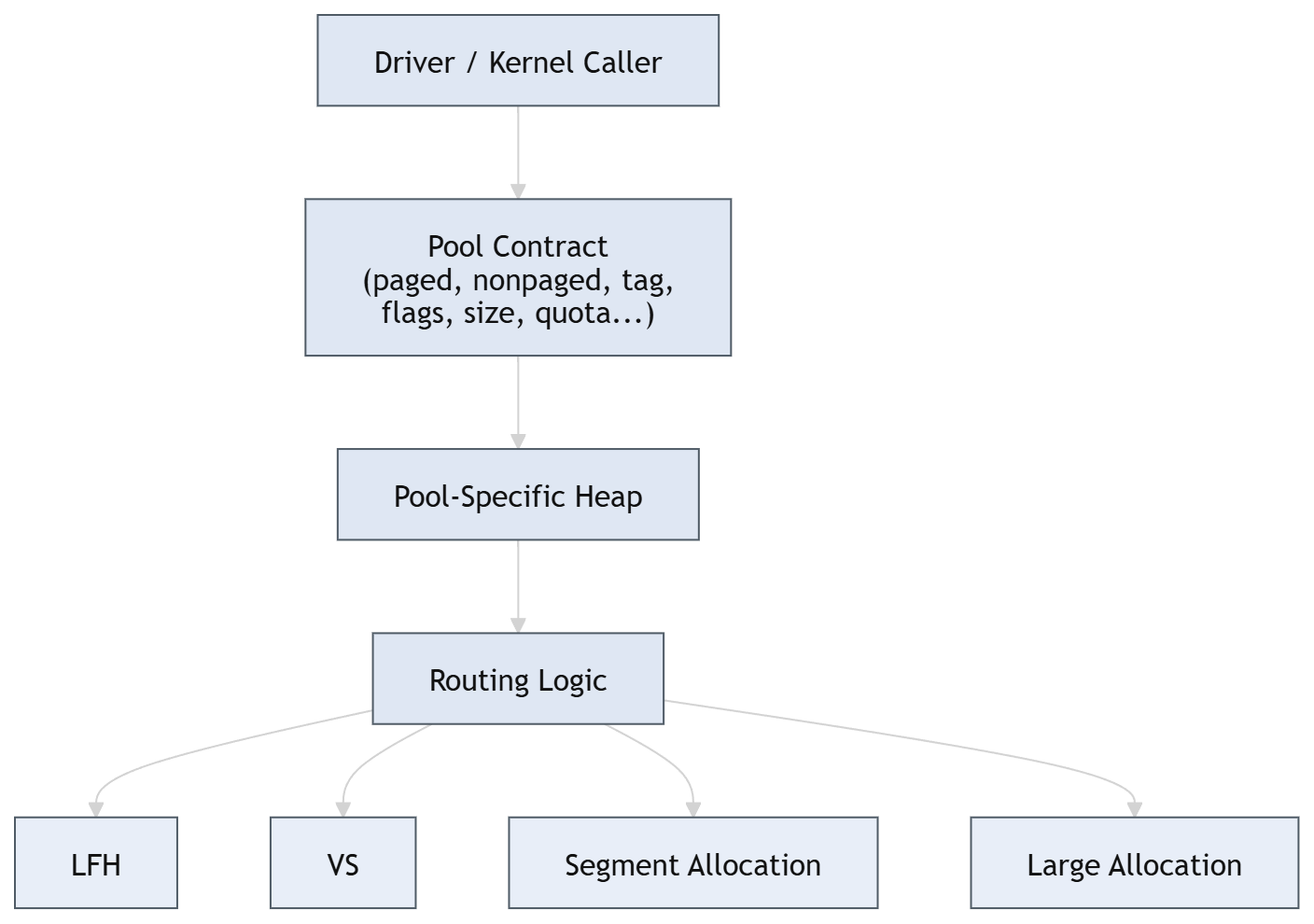

Nowadays, the picture looks like this:
That diagram is intentionally simple, but it captures the main shift in perspective. The modern pool is a routed allocator. The important question is no longer just “what header sits in front of this chunk?”, but “what path did this request enter, and which backend owns it now?”
At this level, the names matter less than the jobs they represent. LFH, the Low Fragmentation Heap, is the regular path for hot small allocations that benefit from tightly controlled bucket geometry. VS, or Variable Size, is the flexible path for requests that still live in the smaller managed world but do not fit the LFH pattern. The segment-allocation path sits further out, serving requests that no longer look like ordinary small subsegment traffic. Beyond that, the largest requests move into the large-allocation path, where the allocator stops trying to manage them like common pool blocks.
One subtlety matters immediately, because otherwise the map is easy to read too mechanically. The segment layer is not just a sibling branch beside LFH and VS. It is also part of the infrastructure underneath them. Managed regions obtained through the segment machinery are the source from which LFH and VS subsegments are built. So “segment allocation” names both a direct route for some requests and a deeper layer that the smaller backends depend on.
Two consequences follow from this design. The first is that size becomes architectural. In the classical pool, size mostly answered the question “which freelist bucket fits this chunk?” In the modern pool, size helps decide which family of allocator behavior will own the request at all. The second is that allocator state moves outward. A local header may still exist, but the real explanation for an allocation’s behavior often lives in the backend that owns it, the larger region that contains it, and the allocator state that tracks that region.
It is also important to be precise about the relationship to the user-mode segment heap. The modern kernel pool is not simply the user-mode segment heap transplanted into kernel mode. The connection is closer to a shared design family. The kernel adopts the same broad allocator ideas and several of the same backend concepts, but it still wraps them in pool-specific semantics, pool-visible metadata, and kernel-specific policy rules. That is why the external contract still looks like pool memory even though the implementation underneath no longer looks like the classical pool.
Seen that way, the modern design separates concerns more clearly than the old one did. The pool layer still expresses what kind of memory the caller wants. The routing logic decides which backend family should serve the request. The backend and its surrounding state decide where the allocation lives, how it is tracked, and how it will later be reused or freed.
How The Kernel Decides Where An Allocation Lands
With the modern pool, the question “where will this allocation go?” has to be answered in two stages. First, the kernel has to decide which pool-facing heap is even eligible to serve the request. Only after that does it decide which backend inside that heap family will own the allocation.
The first stage still belongs to the pool contract. Paged versus nonpaged memory matters here. So do attributes such as quota charging, cache alignment, special-pool requests, and the older pool-type variants that the newer POOL_FLAGS model expresses more explicitly. These properties do not usually choose LFH versus VS directly. They choose the pool domain, policy path, and heap instance that the request is allowed to enter.
Only once that classification is done does the routing question become the one that most reversing material cares about:
The first important boundary is 0x200 bytes. On the build described here, LFH only covers the sub-0x200 size space. A request at 0x200 or above is not an LFH candidate; while it remains inside the first segment-managed range, it goes to VS.
Even below 0x200, small still does not automatically mean LFH. A request in that range only goes through LFH if its size belongs to one of the LFH bucket sizes and the corresponding bucket is active. If the bucket is inactive, the request falls back to VS.
The LFH bucket for a given sub-0x200 size becomes active on the 17th active allocation for that specific bucket, and that same allocation already falls into LFH. Before that point, even an LFH-capable size still goes through VS in that concrete heap instance.

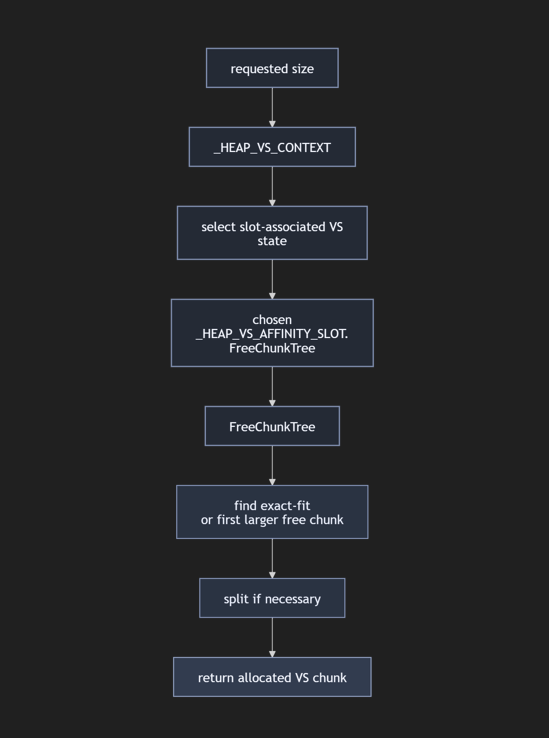

This is why VS matters so much. It is the fallback for LFH-capable sizes whose bucket is inactive, and it is also the direct path for requests from 0x200 up to 0x7F000 bytes, roughly 508 KB, within SegContexts[0]. VS is therefore not just a side path beside LFH; it is the flexible backend that catches both non-LFH small traffic and the larger requests that still belong to the first segment context.

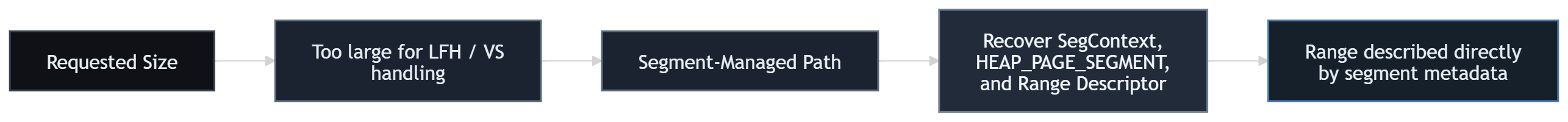

Beyond that range, the allocator moves into direct segment allocation. In the routing shown in the diagram, requests larger than 0x7F000 and up to 0x7F0000, roughly 8 MB, are handled through Segment Allocation in SegContexts[1]. Once the request grows beyond 0x7F0000, it leaves that managed segment-backed path and enters the Large Allocation branch.
There is one more wrinkle in the routing picture. The allocation path is not the only thing that affects where a block appears to live in the short term. For some sizes, freed chunks may spend time in the dynamic lookaside layer (explained later) before they flow back through the ordinary backend free path. That does not replace LFH or VS, but it does affect short-term reuse behavior enough that frees and reallocations do not always map back to the obvious backend as directly as a first reading might suggest, so keep it in mind.
The Global Pool Manager Above The Heap Roots
At this point, there is one architectural layer that needs to be fixed in place before continuing. In the 25H2 layouts used here, the pool heaps are not presented as isolated roots. They sit inside a wider manager state that groups them by node and keeps higher-level pool machinery above the individual heap instances.
The two layouts that matter here are:
1
2
3
4
5
6
7
8
9
10
11
//0x86980 bytes (sizeof)
struct _EX_POOL_HEAP_MANAGER_STATE
{
struct _RTLP_HP_HEAP_MANAGER HeapManager; //0x0
struct _EX_PUSH_LOCK PrivatePoolListLock; //0x38e0
struct _LIST_ENTRY PrivatePools[2]; //0x38e8
ULONGLONG PrivatePoolContextCookie; //0x3908
ULONG NumberOfPools; //0x3910
struct _EX_HEAP_POOL_NODE PoolNode[64]; //0x3940
struct _SEGMENT_HEAP* SpecialHeaps[4]; //0x86940
};
1
2
3
4
5
6
//0x20c0 bytes (sizeof)
struct _EX_HEAP_POOL_NODE
{
struct _SEGMENT_HEAP* Heaps[4]; //0x0
struct _RTL_DYNAMIC_LOOKASIDE Lookasides[2]; //0x40
};
These structures are the missing layer above the heap roots discussed in the following sections. _EX_POOL_HEAP_MANAGER_STATE is the broad manager for the modern pool subsystem.
For the purposes of this article, the most important field is the node array. PoolNode[64] shows that the design is explicitly node-aware at the manager level, which matches both the earlier discussion of NUMA and the public material describing the pool as organized per node. A node does not own one monolithic heap. Instead, each _EX_HEAP_POOL_NODE contains Heaps[4], meaning that one node exposes four ordinary pool heaps.
This is also where the “four pool heaps per node” statement from Yarden Shafir’s material finally gets a concrete home in the target build. In her slides, those four heaps are described as NonPagedPool, NonPagedPoolNx, PagedPool, and a prototype-paged pool.

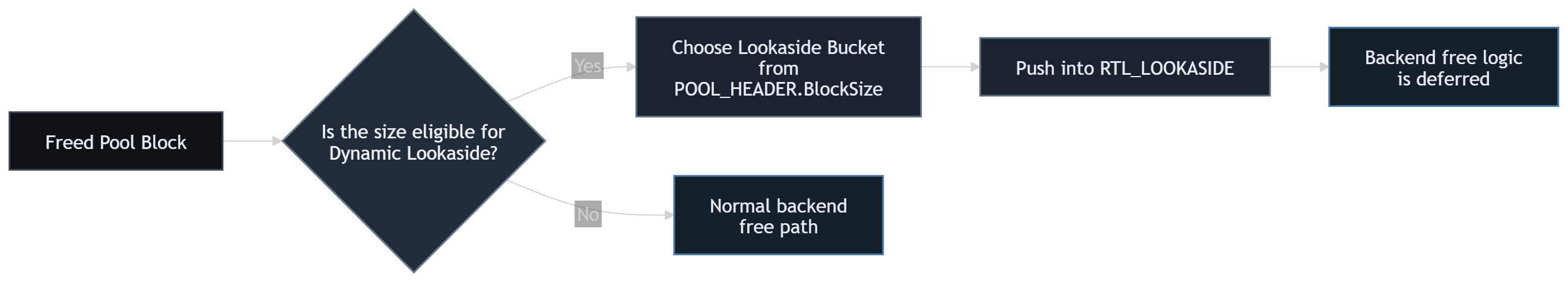

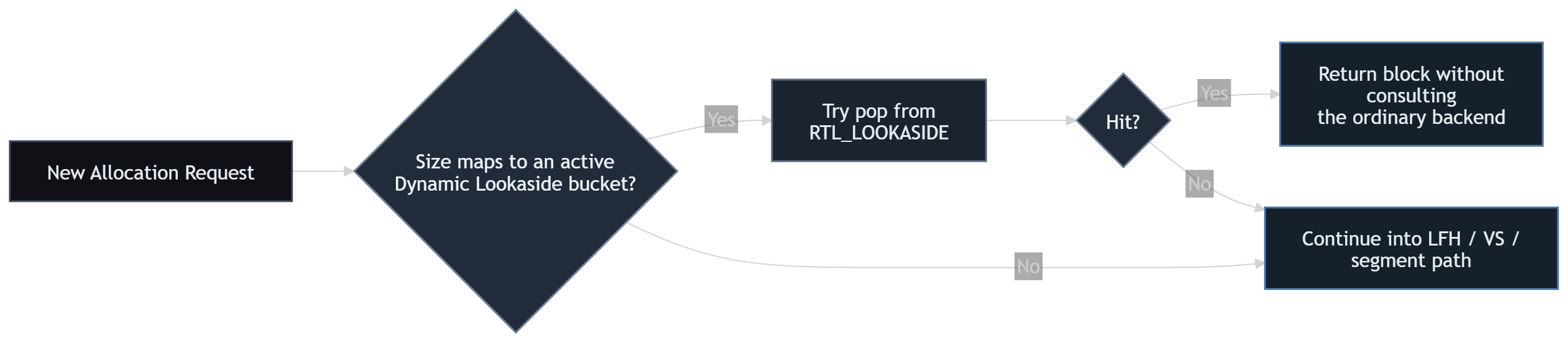

The same node layout also clarifies where short-term free-path caching lives in this build. Lookasides[2] sits beside Heaps[4]. That means the dynamic lookaside layer exposed by 25H2 is attached at the pool-node level, above the individual heap roots. The structure does not name the two lookaside families directly, so the split should not be overexplained here. The stable point is simply that lookaside caching is grouped more coarsely than the four ordinary heaps and lives in node-local manager state.
The rest of _EX_POOL_HEAP_MANAGER_STATE helps place later sections before they arrive. PrivatePoolListLock, PrivatePools[2], and PrivatePoolContextCookie clearly belong to the private-pool story rather than to the main LFH/VS/segment flow. SpecialHeaps[4] also shows that the manager tracks additional heap families beyond the ordinary per-node heap roots, even if this post will not try to assign that field a stronger semantic role without extra reversing.

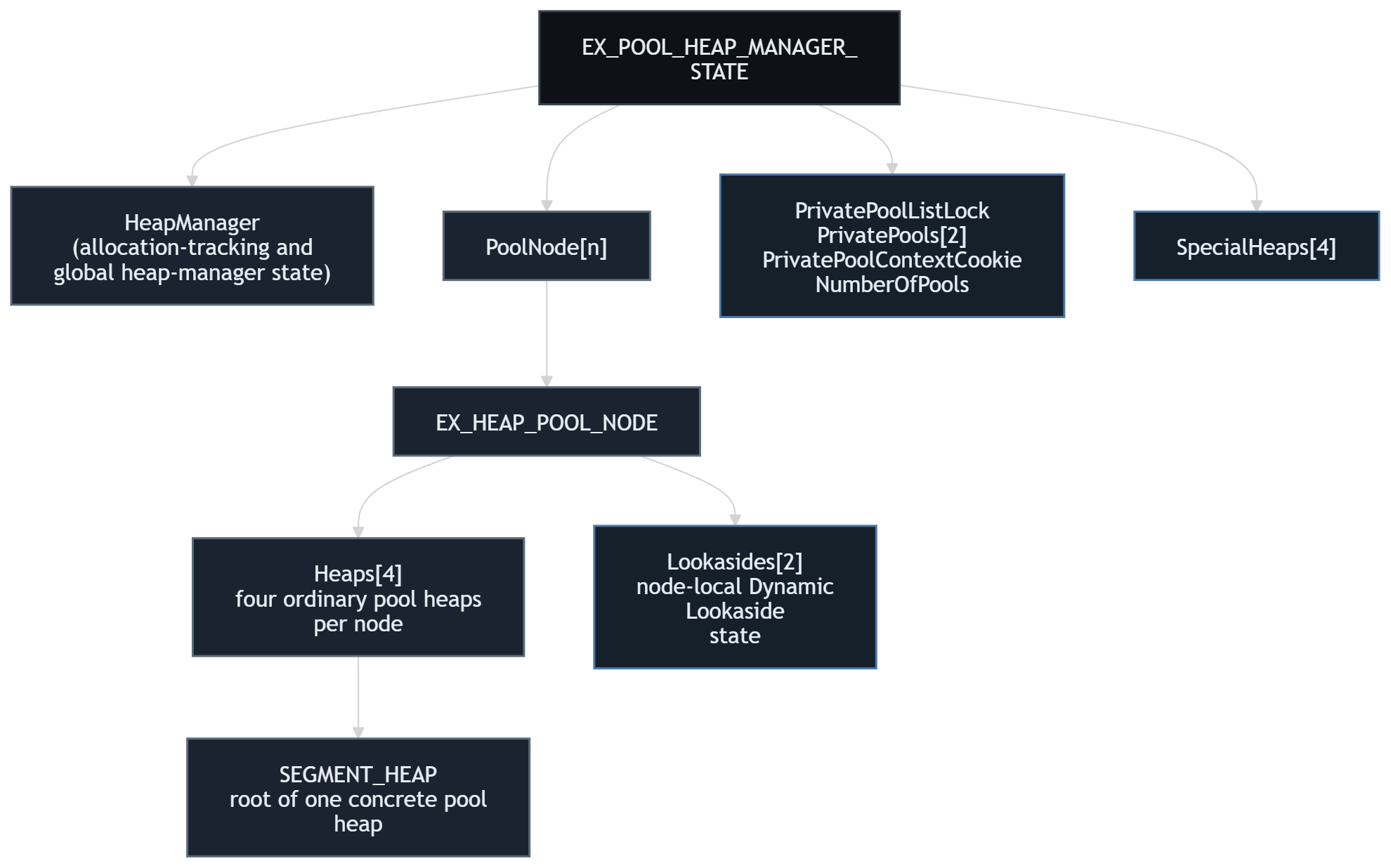

At a high level, the hierarchy now looks like this:
The Root Object Behind A Modern Pool Heap
_SEGMENT_HEAP is the local root for one heap-backed pool domain. It binds together segment management, VS, LFH, large-allocation tracking, address-space bookkeeping, growth policy, and runtime state. It is per heap instance, not global.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
//0xa00 bytes (sizeof)
struct _SEGMENT_HEAP
{
struct RTL_HP_ENV_HANDLE EnvHandle; //0x0
ULONG Signature; //0x10
ULONG GlobalFlags; //0x14
ULONG Interceptor; //0x18
USHORT ProcessHeapListIndex; //0x1c
union
{
struct
{
USHORT AllocatedFromMetadata:1; //0x1e
USHORT ReadOnly:1; //0x1e
};
USHORT InternalFlags; //0x1e
};
struct _RTLP_HEAP_COMMIT_LIMIT_DATA CommitLimitData; //0x20
ULONGLONG ReservedMustBeZero; //0x30
VOID* UserContext; //0x38
ULONGLONG LargeMetadataLock; //0x40
struct _RTL_RB_TREE LargeAllocMetadata; //0x48
volatile ULONGLONG LargeReservedPages; //0x58
volatile ULONGLONG LargeCommittedPages; //0x60
ULONGLONG Tag; //0x68
union _RTL_RUN_ONCE StackTraceInitVar; //0x70
struct _HEAP_RUNTIME_MEMORY_STATS MemStats; //0x80
ULONG GlobalLockOwner; //0xe0
ULONGLONG ContextExtendLock; //0xe8
UCHAR* AllocatedBase; //0xf0
UCHAR* UncommittedBase; //0xf8
UCHAR* ReservedLimit; //0x100
UCHAR* ReservedRegionEnd; //0x108
struct _RTL_HP_HEAP_VA_CALLBACKS_ENCODED CallbacksEncoded; //0x110
struct _HEAP_SEG_CONTEXT SegContexts[2]; //0x140
struct _HEAP_VS_CONTEXT VsContext; //0x2c0
struct _HEAP_LFH_CONTEXT LfhContext; //0x340
};
_SEGMENT_HEAP already carries its own large-allocation metadata through fields such as LargeMetadataLock, LargeAllocMetadata, LargeReservedPages, and LargeCommittedPages. It also tracks the virtual-address range that backs the heap through AllocatedBase, UncommittedBase, ReservedLimit, and ReservedRegionEnd.
At the end of the structure:
1
2
3
struct _HEAP_SEG_CONTEXT SegContexts[2];
struct _HEAP_VS_CONTEXT VsContext;
struct _HEAP_LFH_CONTEXT LfhContext;
The segment layer is part of the heap root itself. Each _SEGMENT_HEAP contains exactly two _HEAP_SEG_CONTEXT structures, one VS context, and one LFH context. These are real ownership links inside the live heap instance, not just a suggestive layout: _SEGMENT_HEAP is the actual root object for one heap instance, and SegContexts[2], VsContext, and LfhContext are embedded in it exactly as the allocator uses them.
CommitLimitData, MemStats, ContextExtendLock, and CallbacksEncoded show that _SEGMENT_HEAP is not merely a container for backend pointers. It is also where the heap keeps growth policy, runtime statistics, synchronization state, and encoded callback information.
The classical allocator encouraged the reader to start from a page and work outward. _SEGMENT_HEAP pushes in the opposite direction: start from the heap root, identify which major context owns the allocation, and only then move down toward the segment, subsegment, or block that the caller actually touched.
The Two Segment Contexts
Segment-managed allocations are handled through:
1
struct _HEAP_SEG_CONTEXT SegContexts[2];
Each heap root carries two _HEAP_SEG_CONTEXT objects, and each one governs a different family of segment-backed ranges. This is the object that defines how one segment family is laid out, how its live segments are tracked, and how free ranges inside those segments are found again later.
Its 25H2 layout is:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
//0xc0 bytes (sizeof)
struct _HEAP_SEG_CONTEXT
{
ULONGLONG SegmentMask; //0x0
UCHAR UnitShift; //0x8
UCHAR PagesPerUnitShift; //0x9
UCHAR FirstDescriptorIndex; //0xa
UCHAR CachedCommitSoftShift; //0xb
UCHAR CachedCommitHighShift; //0xc
union
{
UCHAR LargePagePolicy:3; //0xd
UCHAR FullDecommit:1; //0xd
UCHAR ReleaseEmptySegments:1; //0xd
UCHAR AllFlags; //0xd
} Flags; //0xd
ULONG MaxAllocationSize; //0x10
SHORT OlpStatsOffset; //0x14
SHORT MemStatsOffset; //0x16
VOID* LfhContext; //0x18
VOID* VsContext; //0x20
struct RTL_HP_ENV_HANDLE EnvHandle; //0x28
VOID* Heap; //0x38
ULONGLONG SegmentLock; //0x40
struct _LIST_ENTRY SegmentListHead; //0x48
ULONGLONG SegmentCount; //0x58
struct _RTL_RB_TREE FreePageRanges; //0x60
ULONGLONG FreeSegmentListLock; //0x70
struct _SINGLE_LIST_ENTRY FreeSegmentList[2]; //0x78
};
The broad design still matches the public reversing model. SegContexts[0] is used for the smaller segment-backed world, and SegContexts[1] for the larger one. In the public material, the first context is described as working in units of one page, while the second works in units of sixteen pages. Because each segment family is described through 256 descriptor units, those two contexts lead to two different segment geometries: roughly 1 MB for the first family and 16 MB for the second.
The allocator is not just sorting requests by size and sending them to different lists. It is changing the unit in which surrounding address space is described. Once the second context is involved, the natural object is no longer a single page but a much larger basic unit.

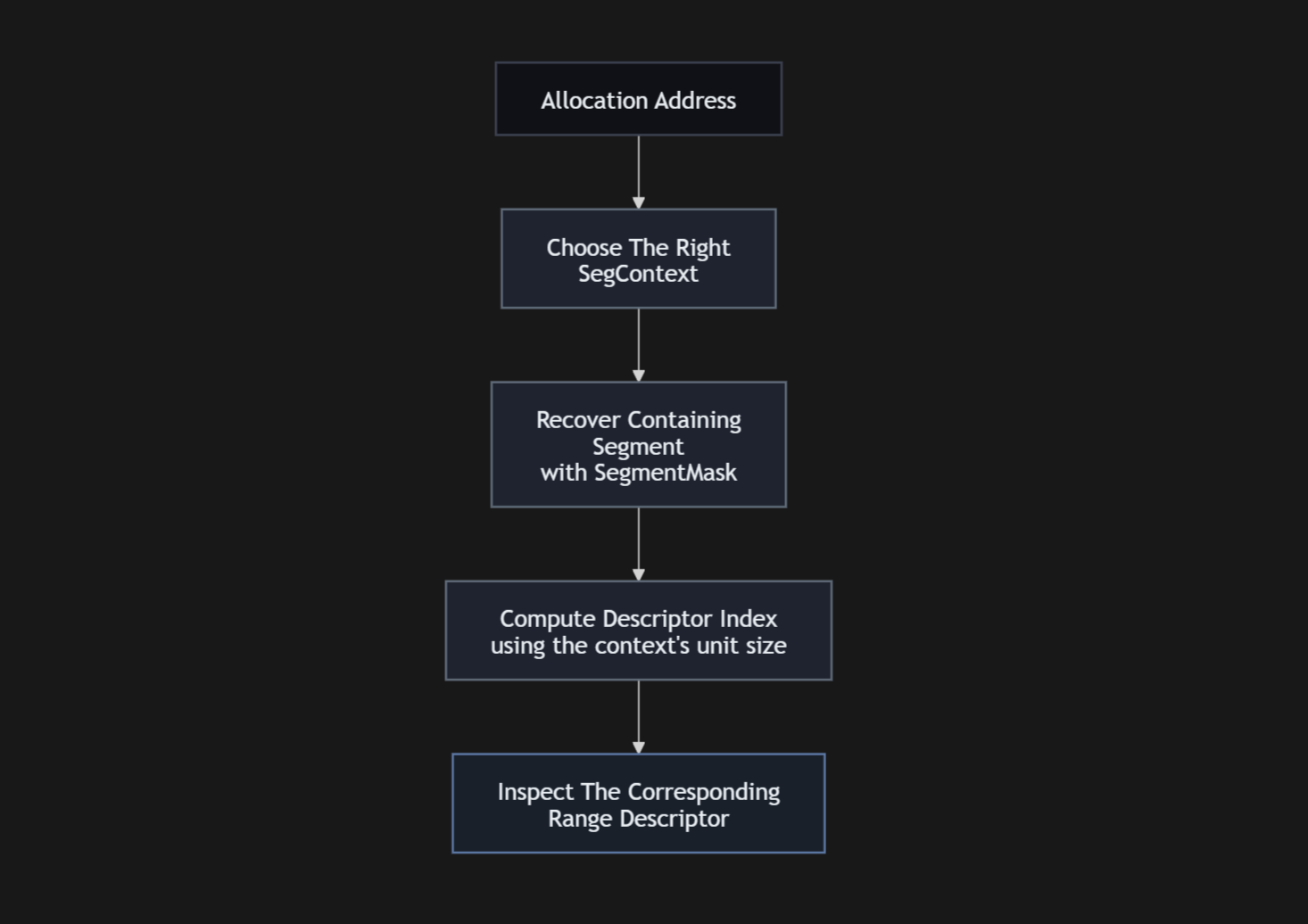

The first cluster of fields defines geometry: SegmentMask, UnitShift, PagesPerUnitShift, FirstDescriptorIndex, and MaxAllocationSize tell the allocator how to interpret an arbitrary address that belongs to this context. They answer questions such as where the containing segment begins, how large one accounting unit is in this context, where the descriptor array starts to describe usable ranges, and what the largest allocation is that still belongs to this segment family.
CachedCommitSoftShift, CachedCommitHighShift, and the Flags byte form a policy layer. They show that a segment context does not only describe geometry. It also carries policy about how aggressively the allocator commits, decommits, and releases segment-backed memory.
The next cluster defines the context’s ownership links back into the rest of the heap. Heap is the back-pointer to the owning _SEGMENT_HEAP. LfhContext and VsContext tie this segment family back to the heap’s small-allocation backends. EnvHandle carries the wider heap-package environment handle through the segment layer. The segment layer is therefore not sealed off from LFH and VS; their relationship to segment-backed memory is kept concrete here. In live parsing, SegContext->VsContext and SegContext->Heap are real ownership links and are directly useful for reconstructing the path from one allocation back to the owning heap machinery.
The structure also tracks the live segment population owned by this context. SegmentLock, SegmentListHead, and SegmentCount make it explicit that each context owns a collection of segments, not one solitary segment. _HEAP_SEG_CONTEXT does not point to one current segment. Instead, SegmentListHead is the list head for the _HEAP_PAGE_SEGMENT objects owned by that context, and each segment links into that list through its own ListEntry.
Finally, there is a clear reuse layer inside the context. FreePageRanges, FreeSegmentListLock, and FreeSegmentList[2] show where the allocator keeps reclaimable internal ranges and quick-access free-segment state for that segment family. Segment-backed allocation is therefore not “reserve a new region every time.” The context remembers reusable internal ranges, and that state lives here rather than in any page-local header.
_HEAP_SEG_CONTEXT turns routing into real memory geometry. It does not yet describe individual allocations, but it does tell the allocator which segment family owns a pointer, what unit that family uses, and where the owned segments and free ranges are tracked.
HEAP_PAGE_SEGMENT And Range Descriptors
_HEAP_PAGE_SEGMENT is the metadata object at the base of each managed segment.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
//0x2000 bytes (sizeof)
union _HEAP_PAGE_SEGMENT
{
struct
{
struct _LIST_ENTRY ListEntry; //0x0
ULONGLONG Signature; //0x10
};
struct
{
union _HEAP_SEGMENT_MGR_COMMIT_STATE* SegmentCommitState; //0x18
UCHAR UnusedWatermark; //0x20
};
struct _HEAP_PAGE_RANGE_DESCRIPTOR DescArray[256]; //0x0
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
//0x20 bytes (sizeof)
struct _HEAP_PAGE_RANGE_DESCRIPTOR
{
union
{
struct _RTL_BALANCED_NODE TreeNode; //0x0
struct
{
ULONG TreeSignature; //0x0
ULONG UnusedBytes; //0x4
USHORT ExtraPresent:1; //0x8
USHORT Spare0:15; //0x8
};
};
volatile UCHAR RangeFlags; //0x18
UCHAR CommittedPageCount; //0x19
UCHAR UnitOffset; //0x1a
UCHAR Spare; //0x1b
union
{
struct _HEAP_DESCRIPTOR_KEY Key; //0x1c
struct
{
UCHAR Align[3]; //0x1c
UCHAR UnitSize; //0x1f
};
};
};
On this build it is a union, and that matters. Many high-level descriptions draw the segment as “a header followed by 256 descriptors.” The real layout is more precise: the segment begins with a 0x2000-byte metadata region that can be read either through the compact _HEAP_PAGE_SEGMENT view or as DescArray[256]. The descriptor array is not somewhere else in the segment. It is the opening metadata region itself.
That also answers the other half of the question above: what part of _HEAP_SEG_CONTEXT points to _HEAP_PAGE_SEGMENT? Structurally, the answer is SegmentListHead, because it chains together the context’s _HEAP_PAGE_SEGMENT objects through their ListEntry. Analytically, there is a second answer: SegmentMask (field from _HEAP_SEG_CONTEX) lets the allocator recover the base of the containing segment from an arbitrary address, and that base is then interpreted as a _HEAP_PAGE_SEGMENT.
FirstDescriptorIndex in _HEAP_SEG_CONTEXT follows directly from that layout. The first descriptor slots are consumed by segment metadata, so not every entry in DescArray[256] is immediately available as an ordinary range descriptor for caller-owned memory. The context needs to know where usable range interpretation begins for that segment family.
The named fields in _HEAP_PAGE_SEGMENT are the minimum metadata the allocator wants to recover quickly from the base of a segment. ListEntry links the segment into the owning context’s segment list. Signature is the keyed value that ties the segment back to its owner. SegmentCommitState and UnusedWatermark belong to segment-level management state rather than to any one caller allocation.
That relationship is best thought of as an encoded formula:
1
EncodedSegmentSignature = SegmentBase ^ SegContext ^ heap-global secret material ^ constant
The important point is not only that the segment does not carry a plain back-pointer to its owner. The relationship is encoded, and the allocator uses that encoded signature to recover or validate the owning context and heap.
_HEAP_PAGE_RANGE_DESCRIPTOR is the per-unit record that turns segment geometry into ranges the allocator can reason about. A segment exposes 256 descriptors, and each descriptor corresponds to one basic unit of the owning context. This is what gives us the 1MB/ 16MB amounts described earlier. The descriptor array is therefore the map from segment-wide geometry down to concrete runs inside that segment.
One descriptor serves several roles. The first union lets a descriptor participate in balanced-tree bookkeeping when the range is tracked in free-range structures. The alternative view exposes fields such as TreeSignature, UnusedBytes, and ExtraPresent. The second half carries the fields that matter most for range interpretation: RangeFlags describes the state or role of the range, CommittedPageCount says how much of it is committed, and UnitOffset together with UnitSize expresses where the represented run sits relative to the segment and how large that run is in the basic units of the current context.
The important shift from the classical model is visible here. Meaning no longer lives only in a small header immediately in front of the returned pointer. A lot of it now lives in a descriptor table indexed by segment geometry. Once a pointer has been associated with the right segment context, the next step is often to recover the segment, find the relevant descriptor, and reason about the allocation from there.
How A Modern Allocation Is Located From A Pointer
When the starting point is a real pointer rather than the heap root, the first question is which allocator path owns that address. Public reversing work describes a bitmap-based classification layer for that job. In Shafir’s material, it appears as the allocation tracker bitmap hanging off the pool manager.
The classification used here is:
1
2
3
4
bitmap classification (publicly documented values used here)
0 -> large allocation
1 -> small block managed through SegContexts[0]
2 -> medium block managed through SegContexts[1]
Those publicly documented values are enough for the parsing model used here. This is one of the biggest conceptual breaks from the classical pool. In the old model, a page dump often let the reader start locally and work outward. In the modern pool, the allocator inserts an explicit classification step before that. If the bitmap says the address belongs to the large-allocation path, then parsing it through segment descriptors is already the wrong model. If it says the address belongs to the first or second segment-managed class, the next step is to choose the matching _HEAP_SEG_CONTEXT and recover the segment and descriptor state from there.
Once the address has been classified as small or medium segment-managed, recovering the owning range becomes a geometric process.
The first step is to choose the correct _HEAP_SEG_CONTEXT, which the bitmap-classification step already prepared. From there, the context provides the geometry needed to move from an arbitrary address back to the beginning of its containing segment. The allocator masks the address with SegmentMask, and the result is the base of the relevant _HEAP_PAGE_SEGMENT.
Once the containing segment has been recovered, the next step is to determine which descriptor in DescArray[256] corresponds to the address. The address is converted into an offset relative to the segment base, and that offset is reduced to a unit index using the context’s unit size. Public descriptions usually express this through UnitShift, which lets the allocator convert a segment-relative byte offset into the descriptor index for the corresponding unit.
That gives the descriptor for the unit containing the address, but not necessarily the beginning of the whole range. The touched unit may be the first unit of the range, or it may be a continuation unit inside a larger LFH, VS, or other segment-managed run. RangeFlags, UnitOffset, and UnitSize are the fields that resolve that ambiguity. RangeFlags tells the allocator what kind of range it is looking at and how the current descriptor should be interpreted. UnitOffset tells how far the current unit sits from the beginning of its owning range. UnitSize tells how large that range is once the first descriptor has been found.
The process can be illustrated with a simple example. Assume the bitmap has already classified a pool pointer as a small segment-managed allocation, so the correct context is SegContexts[0]. In the public descriptions of that context, the base unit is one page, so UnitShift = 12, and the segment size is 1 MB.
Suppose the pointer of interest is:
1
Ptr = 0xffffaa8123456780
And the chosen context uses:
1
SegmentMask = 0xfffffffffff00000
The containing segment is:
1
2
Segment = Ptr & SegmentMask
= 0xffffaa8123400000
The segment-relative offset is:
1
2
SegmentOffset = Ptr - Segment
= 0x56780
With one-page units, the descriptor index is:
1
2
DescriptorIndex = SegmentOffset >> 12
= 0x56
So the first descriptor to inspect is:
1
DescArray[0x56]
Assume this descriptor is a continuation unit and:
1
DescArray[0x56].UnitOffset = 0x3
The first descriptor of the owning range is then:
1
2
FirstIndex = 0x56 - 0x3
= 0x53
Now assume:
1
DescArray[0x53].UnitSize = 0x4
The range begins at unit 0x53 and spans 4 units. In SegContexts[0], one unit is one page, so:
1
2
3
4
5
RangeStart = Segment + (0x53 << 12)
= 0xffffaa8123453000
RangeSize = 0x4 << 12
= 0x4000
The recovered range is:
1
Range = [0xffffaa8123453000, 0xffffaa8123457000)
That does not yet say whether the range belongs to LFH, VS, or another segment-managed state. That still depends on RangeFlags and, later, on the backend-specific structure at the beginning of the recovered subsegment. But the geometric move is already complete: pointer -> segment -> descriptor -> first descriptor of the range -> full extent of the range. That part of the modern model is no longer just imported from public reversing; it has been confirmed live on real VS-owned allocations.
This process replaces the older habit of inferring layout from the local page alone. A modern segment-managed allocation can cross page boundaries, and neighboring pages do not by themselves tell where the owning range begins or how large it is. The descriptor array does. Large allocations are the other branch: if the bitmap classifies the address into the large-allocation path, the correct model is no longer segment-descriptor parsing, but the large-allocation metadata owned by the heap itself.
Part IV — Backend Ownership Paths
LFH In The Modern Kernel Pool
LFH, the Low Fragmentation Heap, is the bucketized backend for small sizes that the allocator sees often enough to regularize. It does not treat each request as an independent variable-size chunk. It groups requests by bucket and serves them from subsegments where every block has the same size.
The important thing to keep in view is that LFH is not “the backend for all small allocations.” On this build, the LFH-capable space is the sub-0x200 band:
| Allocation size | Granularity |
|---|---|
< 0x200 bytes | 16 B |
Remember: LFH lives in the first segment context, but it does not cover that whole context. Requests of 0x200 bytes and above are outside LFH’s bucketized space and fall into VS while they remain in the first segment-managed range. Requests below 0x200 still go to VS until the corresponding bucket is active.
The useful structures here are the heap-wide LFH context, the bucket, the embedded bucket owner, and the LFH subsegment:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
//0x6c0 bytes (sizeof)
struct _HEAP_LFH_CONTEXT
{
VOID* BackendCtx; //0x0
struct _HEAP_SUBALLOCATOR_CALLBACKS Callbacks; //0x8
UCHAR* AffinityModArray; //0x38
UCHAR MaxAffinity; //0x40
UCHAR LockType; //0x41
SHORT MemStatsOffset; //0x42
struct _HEAP_LFH_CONFIG Config; //0x44
ULONG TlsSlotIndex; //0x4c
ULONGLONG EncodeKey; //0x50
ULONGLONG ExtensionLock; //0x80
struct _SINGLE_LIST_ENTRY MetadataList[4]; //0x88
struct _HEAP_LFH_HEAT_MAP HeatMap; //0xc0
struct _HEAP_LFH_BUCKET* Buckets[128]; //0x1c0
struct _HEAP_LFH_SLOT_MAP SlotMaps[1]; //0x5c0
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
//0x78 bytes (sizeof)
struct _HEAP_LFH_BUCKET
{
struct _HEAP_LFH_SUBSEGMENT_OWNER State; //0x0
ULONGLONG TotalBlockCount; //0x38
ULONGLONG TotalSubsegmentCount; //0x40
ULONG ReciprocalBlockSize; //0x48
USHORT HotHeatThreshold; //0x4c
USHORT PrivateHeatThreshold; //0x4e
ULONGLONG PrivSlotListLock; //0x50
struct _HEAP_LFH_PTRREF_LIST PrivSlotList; //0x58
UCHAR CompactionNeeded; //0x5c
UCHAR Spare[7]; //0x5d
struct _HEAP_AFFINITY_MGR AffinityMgr; //0x68
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
//0x38 bytes (sizeof)
struct _HEAP_LFH_SUBSEGMENT_OWNER
{
UCHAR IsBucket:1; //0x0
UCHAR BucketIndex:7; //0x0
union
{
UCHAR SlotCount; //0x1
UCHAR AvailableSubsegmentCount; //0x1
};
USHORT BucketRef; //0x2
USHORT PrivateSlotMapRef; //0x4
USHORT HeatMapRef; //0x6
union
{
struct _SINGLE_LIST_ENTRY OwnerFreeList; //0x8
USHORT Spare:12; //0x8
};
union
{
ULONGLONG Lock; //0x10
struct _SINGLE_LIST_ENTRY SlotStandbyEntry; //0x10
struct
{
struct _HEAP_LFH_PTRREF_LIST PrivSlotListEntry; //0x10
ULONG OwnerThreadId; //0x14
};
};
struct _LIST_ENTRY AvailableSubsegmentList; //0x18
struct _LIST_ENTRY FullSubsegmentList; //0x28
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
//0x48 bytes (sizeof)
struct _HEAP_LFH_SUBSEGMENT
{
struct _LIST_ENTRY ListEntry; //0x0
union _HEAP_LFH_SUBSEGMENT_STATE State; //0x10
union
{
struct _SINGLE_LIST_ENTRY OwnerFreeListEntry; //0x18
struct
{
UCHAR CommitStateOffset; //0x18
UCHAR Spare0:4; //0x19
};
};
USHORT FreeCount; //0x20
USHORT BlockCount; //0x22
UCHAR FreeHint; //0x24
UCHAR WitheldBlockCount; //0x25
union
{
struct
{
UCHAR CommitUnitShift; //0x26
UCHAR CommitUnitCount; //0x27
};
union _HEAP_LFH_COMMIT_UNIT_INFO CommitUnitInfo; //0x26
};
struct _HEAP_LFH_SUBSEGMENT_ENCODED_OFFSETS BlockOffsets; //0x28
USHORT BucketRef; //0x2c
USHORT PrivateSlotMapRef; //0x2e
USHORT HighWatermarkBlockIndex; //0x30
UCHAR BitmapSearchWidth; //0x32
union
{
struct
{
UCHAR PrivateFormat:1; //0x33
UCHAR Spare1:7; //0x33
};
union _HEAP_LFH_SUBSEGMENT_UCHAR_FIELDS UChar; //0x33
};
ULONG Spare3; //0x34
ULONGLONG CommitLock; //0x38
ULONGLONG BlockBitmap[1]; //0x40
};
_HEAP_LFH_CONTEXT is the root of LFH state for one _SEGMENT_HEAP. It owns the bucket table, the encoding key, the configuration, and the backend hooks LFH uses to obtain and manage subsegments. BackendCtx and Callbacks show that LFH still sits on top of the segment-managed world described earlier. EncodeKey, MetadataList, HeatMap, AffinityModArray, MaxAffinity, and SlotMaps show that LFH has its own control plane for encoding, concurrency, locality, and metadata growth.
The bucket table is the center of the model. Buckets[128] gives each bucketized allocation size a concrete control object. _HEAP_LFH_BUCKET is that object. TotalBlockCount and TotalSubsegmentCount show how much traffic the bucket is carrying. ReciprocalBlockSize captures its fixed geometry. HotHeatThreshold, PrivateHeatThreshold, PrivSlotList, and AffinityMgr show where LFH starts making locality and placement decisions for that size class.
The State field at offset 0x0 is _HEAP_LFH_SUBSEGMENT_OWNER. That is the missing layer between the context and the subsegment. It is where the bucket’s subsegment lists actually live. BucketIndex and BucketRef tie it to one bucket geometry. AvailableSubsegmentList and FullSubsegmentList are the fields that link to _HEAP_LFH_SUBSEGMENT objects, and those subsegments chain into the lists through their ListEntry. OwnerFreeList is not that subsegment list.

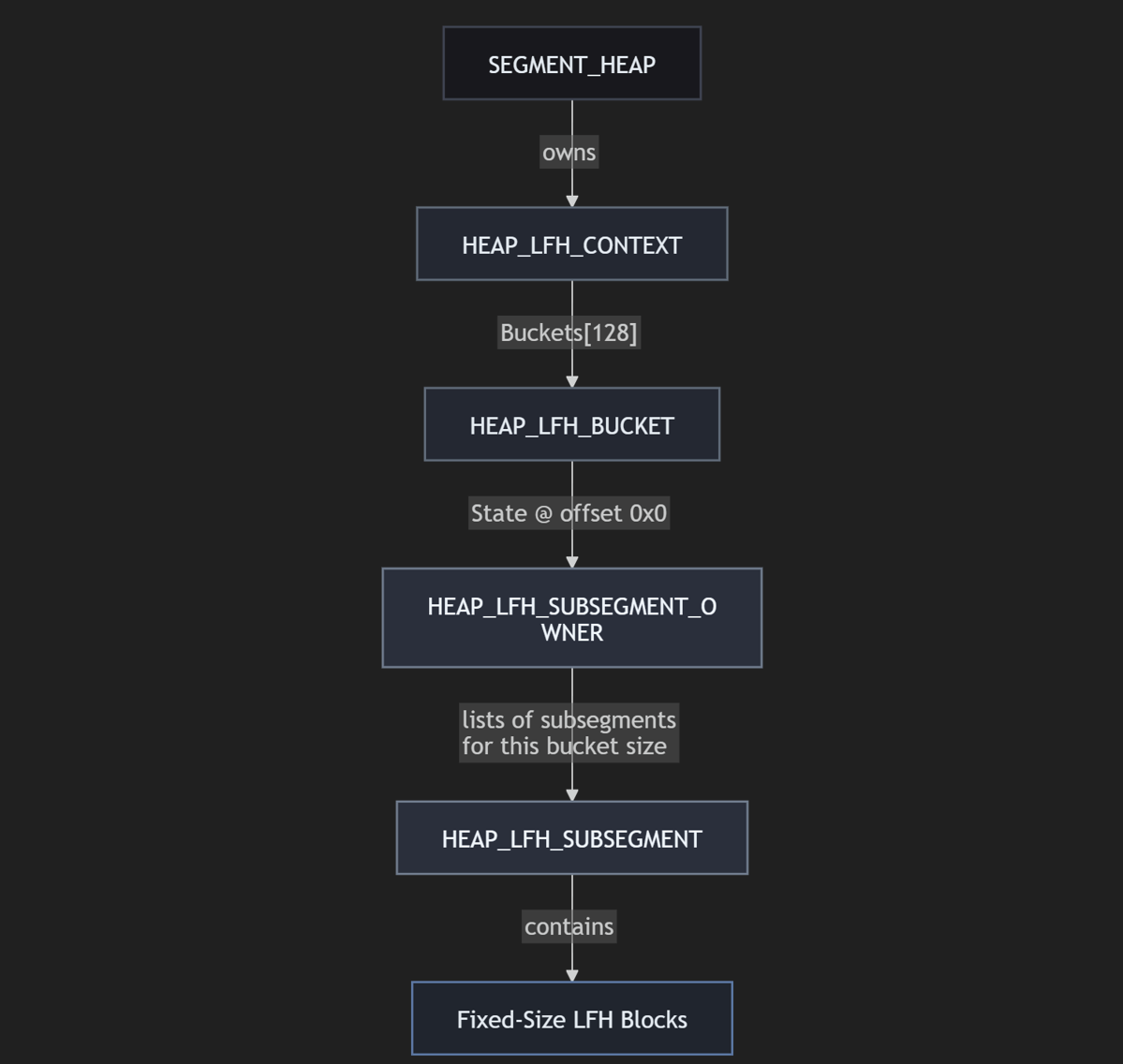

The relationship is:
At the subsegment level, BucketRef identifies which bucket geometry the subsegment belongs to, and ListEntry is what lets that subsegment be chained into the owner lists for that bucket.

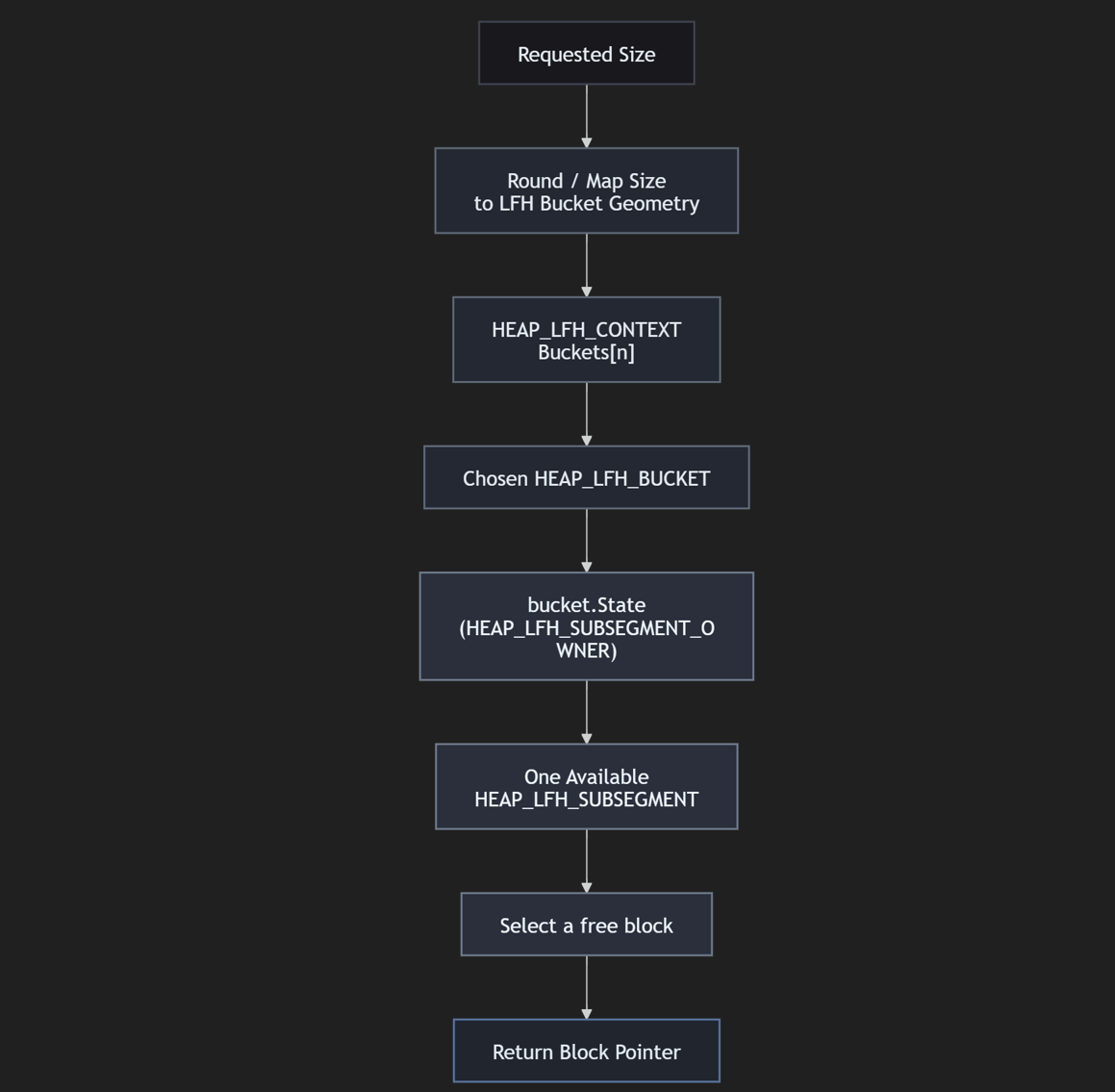

When the allocator services a new LFH allocation, the path is:

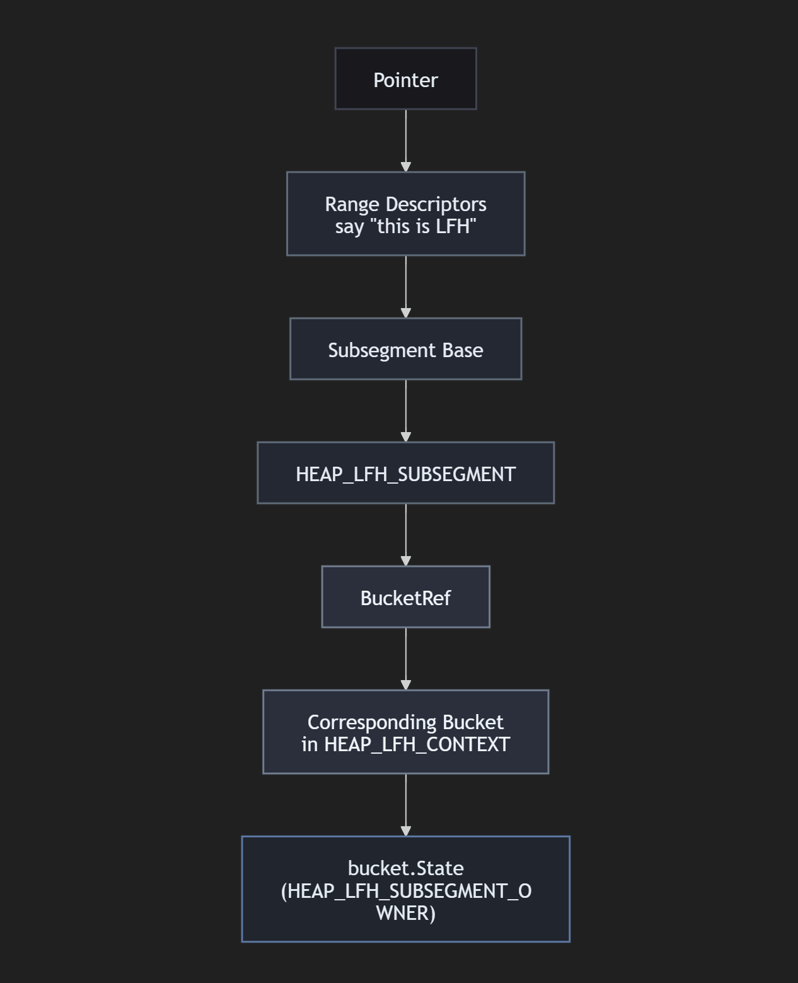

When the reader analyzes an existing pointer already known to belong to an LFH range, the path is the opposite:
Once a range has been identified as LFH-owned, _HEAP_LFH_SUBSEGMENT is the structure that matters. It lives at the beginning of the LFH subsegment recovered through the range-descriptor machinery. Every block in that subsegment has the same bucket size, so LFH does not need per-block size metadata. BlockCount, FreeCount, FreeHint, BucketRef, and BlockBitmap matter more than anything resembling a classical chunk header.
In memory, the subsegment looks like this:
1
2
3
4
LFH-owned range
+------------------------+----------------------+----------------------+----------------------+
| HEAP_LFH_SUBSEGMENT | block 0 | block 1 | block 2 |
+------------------------+----------------------+----------------------+----------------------+
An allocated LFH block looks like this:
1
2
3
4
5
6
7
allocated LFH block
+-------------+---------------------------+
| POOL_HEADER | caller-visible bytes |
+-------------+---------------------------+
^
|
pointer returned by ExAllocatePool*
The per-block POOL_HEADER is no longer what explains LFH geometry. The bucket and the subsegment do. The header at the front of the returned block is still useful for pool-facing information such as the tag, but it is not what tells the allocator how large every block in the subsegment is.
BlockBitmap is the clearest expression of that design. Instead of walking a variable-size chunk sequence and reading each block’s local size, LFH tracks occupancy through a bitmap in the subsegment header. FreeHint accelerates the search for a candidate free block. Public material also describes randomized bitmap scanning, which is one reason a newly freed LFH block is not always reused in the naive “next allocation gets the same slot” way.
BlockOffsets is encoded with the LFH key and the subsegment address:
1
DecodedBlockOffsets = EncodedBlockOffsets ^ LfhEncodeKey ^ (SubsegmentAddress >> 12)
The subsegment still needs exact geometry to find its blocks, but that geometry is no longer stored as plain per-block size metadata that can be read directly out of each chunk.
ListEntry links the subsegment into LFH-managed lists for its bucket. State holds packed subsegment state. CommitUnitShift, CommitUnitCount, and CommitLock show that commit and growth are still managed explicitly inside LFH.
Allocated LFH blocks in the kernel pool may still begin with a POOL_HEADER, but that header no longer explains LFH organization. The real LFH ownership and reuse logic lives in the bucket, the subsegment header, and the bitmap.
VS In The Modern Kernel Pool
VS, the Variable Size backend, is the flexible path for the part of the modern pool where chunk geometry has to be tracked block by block. That includes uncommon sizes, common sizes whose LFH buckets are not active yet, and the broader part of the allocator where one fixed bucket geometry is not enough.
The contrast with LFH is simple. In LFH, once the bucket and subsegment are known, the geometry of every block is already fixed. In VS, it is not. A VS-managed range still begins in a subsegment, but each chunk inside that range may have a different size.
The useful 25H2 layouts are:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
//0x60 bytes (sizeof)
struct _HEAP_VS_CONTEXT
{
USHORT SlotMapRef; //0x0
UCHAR AffinityMask; //0x2
UCHAR LockType; //0x3
struct _RTL_HP_VS_CONFIG Config; //0x4
UCHAR EliminatePointers:1; //0x5
SHORT MemStatsOffset; //0x6
VOID* BackendCtx; //0x8
struct _HEAP_SUBALLOCATOR_CALLBACKS Callbacks; //0x10
struct _HEAP_AFFINITY_MGR AffinityMgr; //0x40
ULONGLONG TotalCommittedUnits; //0x50
ULONGLONG FreeCommittedUnits; //0x58
};
1
2
3
4
5
6
7
8
9
//0x80 bytes (sizeof)
struct _HEAP_VS_AFFINITY_SLOT
{
struct _HEAP_VS_CONTEXT* VsContext; //0x0
ULONGLONG Lock; //0x8
struct _RTL_RB_TREE FreeChunkTree; //0x10
struct _LIST_ENTRY SubsegmentList; //0x20
struct _HEAP_VS_DELAY_FREE_CONTEXT DelayFreeContext; //0x40
};
1
2
3
4
5
6
//0x4 bytes (sizeof)
struct _HEAP_VS_SLOT_MAP
{
USHORT SlotRef; //0x0
USHORT ContentionRemapCount; //0x2
};
1
2
3
4
5
6
7
8
9
10
11
//0x28 bytes (sizeof)
struct _HEAP_VS_SUBSEGMENT
{
struct _LIST_ENTRY ListEntry; //0x0
ULONGLONG CommitBitmap; //0x10
ULONGLONG CommitLock; //0x18
USHORT Size; //0x20
USHORT OwnerSlotRef; //0x22
USHORT Signature:15; //0x24
USHORT FullCommit:1; //0x24
};
And the specific headers for this section:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
//0x10 bytes (sizeof)
struct _HEAP_VS_CHUNK_HEADER
{
union _HEAP_VS_CHUNK_HEADER_SIZE Sizes; //0x0
union
{
struct
{
ULONG EncodedSegmentPageOffset:8; //0x8
ULONG UnusedBytes:1; //0x8
ULONG SkipDuringWalk:1; //0x8
ULONG Spare:22; //0x8
};
ULONG AllocatedChunkBits; //0x8
};
};
1
2
3
4
5
6
7
8
9
10
11
12
13
//0x20 bytes (sizeof)
struct _HEAP_VS_CHUNK_FREE_HEADER
{
union
{
struct _HEAP_VS_CHUNK_HEADER Header; //0x0
struct
{
ULONGLONG OverlapsHeader; //0x0
struct _RTL_BALANCED_NODE Node; //0x8
};
};
};
_HEAP_VS_CONTEXT is the heap-wide front end for VS. BackendCtx and Callbacks show the same dependency seen in LFH: VS still asks the surrounding heap machinery for subsegments and commit operations. TotalCommittedUnits and FreeCommittedUnits summarize how much committed VS-owned space exists and how much of it remains free.
_HEAP_VS_CONTEXT is the heap-wide front end for VS, not the place where the operational free-tree state lives. In 25H2, FreeChunkTree, SubsegmentList, and DelayFreeContext live in _HEAP_VS_AFFINITY_SLOT, and _HEAP_VS_SLOT_MAP is part of a real slot-selection / remap layer above those slot owners. DelayFreeContext is used in the small free path. The exact contention-remap algorithm is still outside the scope of this post, but the existence of the slot-based indirection layer is no longer hypothetical.
The stable model is still the old one at the conceptual level: free-tree, subsegments, split/coalesce, chunk-local size metadata. What changed in 25H2 is where that operational state actually lives.

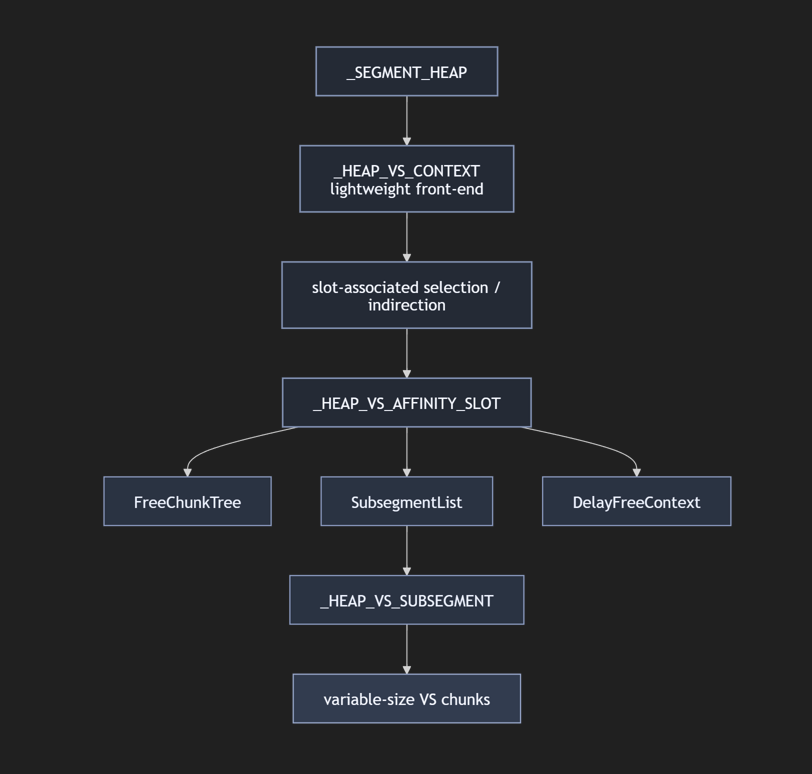

The 25H2 layout is therefore:
Allocation then follows the slot layer:

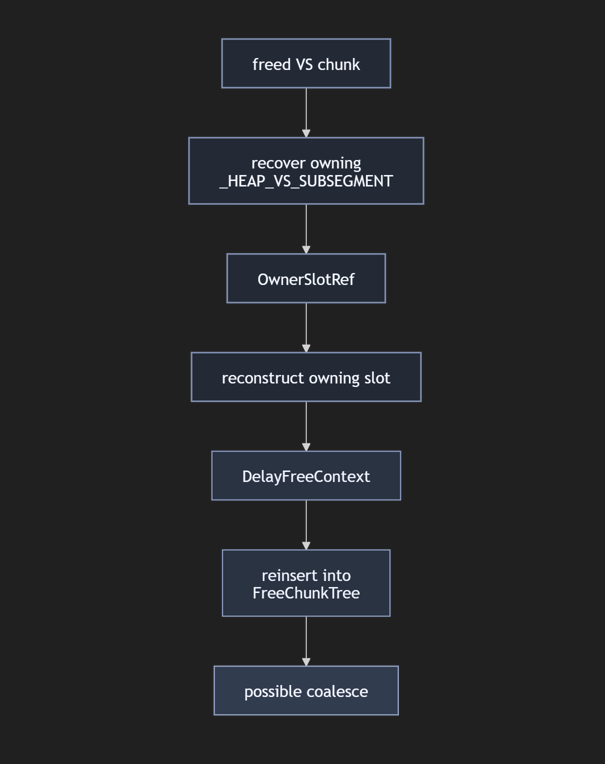

That tree-based view is what makes free and coalescing make sense again in VS. LFH fixes one geometry for the whole subsegment. VS has to remember the size of each chunk so it can split larger chunks on allocation and merge adjacent free chunks on free.
_HEAP_VS_SUBSEGMENT turns that into something concrete. ListEntry links the subsegment into VS-managed lists. CommitBitmap and CommitLock show that commit is tracked explicitly inside the subsegment. Size gives the scale of the managed extent. OwnerSlotRef is a relative reference to the owning slot. In live parsing, the real chain was followed as pointer -> segment -> decoded SegContext -> VsContext -> OwnerSlotRef -> owning slot.
SlotRef, SlotMapRef, and OwnerSlotRef are therefore relative offsets from VsContext expressed in 0x40-byte units. Signature validates or recovers ownership rather than exposing a plain pointer chain.
The free path can be sketched like this:
DelayFreeContext is not just a field that happens to be present in the layout. It is part of the real small free path on this build, and the free path does recompose the slot owner from OwnerSlotRef.
_HEAP_VS_CHUNK_HEADER is where per-chunk geometry comes back. VS needs chunk-local metadata because there is no bucket geometry that can stand in for it. Sizes still carries packed size state, but the second dword exposes EncodedSegmentPageOffset, UnusedBytes, SkipDuringWalk, and related packed bits instead of a plain size field.
The encoded-header relationship can be pictured like this:
1
DecodedVsChunkHeader = EncodedVsChunkHeader ^ HeapKey ^ ChunkHeaderAddress
The point is that VS still depends on chunk-local geometry, but no longer leaves it in plain local metadata.
A VS-owned range looks like this:
1
2
3
4
VS-owned range
+----------------------+--------------------+--------------------+--------------------+
| HEAP_VS_SUBSEGMENT | VS chunk | VS chunk | VS chunk |
+----------------------+--------------------+--------------------+--------------------+
An allocated VS chunk looks like this:
1
2
3
4
5
6
7
allocated VS chunk
+----------------------+-------------+---------------------------+
| HEAP_VS_CHUNK_HEADER | POOL_HEADER | caller-visible bytes |
+----------------------+-------------+---------------------------+
^
|
pointer returned by ExAllocatePool*
An LFH block can be explained as “pool-facing header on top of a bucketized block.” A VS block cannot. In VS, there is an extra allocator header in front of the pool-facing header because the backend needs explicit chunk geometry for each block.
_HEAP_VS_CHUNK_FREE_HEADER is the free-chunk view in which the tree node overlays the ordinary VS chunk header. Once the chunk becomes free, the allocator does not prepend some unrelated tree header. It reinterprets the same front region as a tree node.
That layout looks like this:
1
2
3
4
free VS chunk
+---------------------------+----------------------+----------------------+
| HEAP_VS_CHUNK_FREE_HEADER | free VS chunk body | remaining free space |
+---------------------------+----------------------+----------------------+
The key point is that a free VS chunk is not just unused data. It is a tree node carrying the metadata needed for the backend to find, remove, split, and reinsert variable-size chunks.
That overlay has been corroborated by live inspection of freed VS chunks, not just by type layout.
VS therefore feels closer to the classical allocator than LFH does. Coalescing matters again. Split decisions matter again. Per-block headers matter again. But VS is not a return to old pool freelists. It is still a segment-backed, tree-driven, encoded-metadata allocator.
The pool-facing POOL_HEADER still exists in allocated VS chunks, but it is not what explains backend ownership. In VS, that job belongs to the VS subsegment header, the VS chunk header, and the VS free tree.
The division of labor is:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
POOL_HEADER
-> pool-facing semantics
HEAP_VS_CHUNK_HEADER
-> VS chunk geometry
HEAP_VS_SUBSEGMENT
-> subsegment-local VS metadata
HEAP_VS_AFFINITY_SLOT
-> per-slot lock, free tree, subsegment list, and delayed-free state
HEAP_VS_SLOT_MAP
-> indirection from the context to a concrete slot
HEAP_VS_CONTEXT
-> heap-wide VS front-end policy and accounting
LFH regularizes allocation traffic by moving geometry upward into buckets and subsegments. VS keeps flexibility by reintroducing chunk-local geometry, but still does so inside the same segment-backed and encoded framework.
When A Common Size Still Lands In VS
Falling below 0x200 bytes does not mean the allocation is already using LFH. It only means that the size is eligible for LFH.
LFH is demand-activated. Until the corresponding bucket is active in the heap instance serving the request, the same sub-0x200 size is still handled by VS.
The bucket is not active at 16 active allocations. The 17th active allocation is the one that activates the bucket, and that same allocation is already served by LFH. Before that point, a fully LFH-capable size class still lands in VS in that concrete heap instance.
At 0x200 bytes and above, the reason is simpler: the request is no longer LFH-capable in this model. If it is still below the VS upper bound, it goes to VS directly rather than waiting for any LFH bucket state.
The decision is:
A size class is therefore not “an LFH size” in the abstract. It only becomes LFH-backed once the relevant bucket is active in the specific heap instance that is serving the request. Activation is local to that heap instance, not a universal property of that size everywhere in the system.
Backend identification should never be done from size alone. Size is only the first filter. The real answer comes from allocator state, range metadata, and the backend-specific structure recovered from the owning range.
The Modern POOL_HEADER
As mentioned earlier, POOL_HEADER still exists in the modern pool, but it no longer deserves the same role it had in the classical model. In the old allocator, the local header helped explain chunk geometry, adjacency, and free-list behavior. In the modern design, backend ownership moved outward into LFH, VS, segment metadata, and large-allocation metadata. POOL_HEADER stayed behind as the pool-facing header.
The 25H2 layout is:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
//0x10 bytes (sizeof)
struct _POOL_HEADER
{
union
{
struct
{
USHORT PreviousSize:8; //0x0
USHORT PoolIndex:8; //0x0
USHORT BlockSize:8; //0x2
USHORT PoolType:8; //0x2
};
ULONG Ulong1; //0x0
};
ULONG PoolTag; //0x4
union
{
struct _EPROCESS* ProcessBilled; //0x8
struct
{
USHORT AllocatorBackTraceIndex; //0x8
USHORT PoolTagHash; //0xa
};
};
};
In the documented small-allocation paths, POOL_HEADER is still physically close to the bytes returned by the API:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
LFH block
+-------------+---------------------------+
| POOL_HEADER | caller-visible bytes |
+-------------+---------------------------+
^
|
pointer returned by ExAllocatePool*
VS block
+----------------------+-------------+---------------------------+
| HEAP_VS_CHUNK_HEADER | POOL_HEADER | caller-visible bytes |
+----------------------+-------------+---------------------------+
^
|
pointer returned by ExAllocatePool*
Public post-19H1 descriptions support these two layouts cleanly: LFH uses POOL_HEADER, and VS uses _HEAP_VS_CHUNK_HEADER followed by POOL_HEADER. This post does not make the same local-layout claim for direct segment allocation without further verification.
It is still local metadata, but it is no longer the structure that explains backend ownership. In LFH, block geometry comes from the bucket and the LFH subsegment. In VS, it comes from _HEAP_VS_CHUNK_HEADER and the surrounding VS state. POOL_HEADER is the piece that carries pool semantics into memory.
PreviousSize is still present, but in the public heap-backed pool model it is not the old coalescing primitive. The documented exception is the cache-aligned case. If the caller asks for a cache-aligned allocation, the allocator may need to move the returned pointer forward so that the user buffer starts on the required boundary. To do that without losing the pool-facing metadata immediately before the returned bytes, it can insert a second POOL_HEADER. In that case, PreviousSize in the second header is reused to store the offset back to the first one.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
ordinary block
+-------------+---------------------------+
| POOL_HEADER | caller-visible bytes |
+-------------+---------------------------+
^
|
pointer returned by ExAllocatePool*
cache-aligned block
+-------------+-------------------------+-------------+----------------------+
| POOL_HEADER | alignment gap / padding | POOL_HEADER | caller-visible bytes |
+-------------+-------------------------+-------------+----------------------+
^
|
pointer returned by ExAllocatePool*
second_header.PreviousSize
-> distance back to the first header
PoolIndex is also still present in the layout, but the public post-19H1 material describes it as unused in the documented small-allocation path.
BlockSize still matters. It carries a pool-visible size in pool granularity, but that is no longer the same thing as saying the local header explains the whole block geometry. In an LFH allocation, for example, that size is a projection of bucket geometry, not the source of it. This field also matters later on the free path, because Dynamic Lookaside uses it to choose a bucket.
PoolType keeps the pool-facing contract alive. Here is the caller-facing meaning of the allocation: paged versus nonpaged, quota-related semantics, cache-alignment behavior, and the rest of the pool contract.
PoolTag keeps the identity of the allocation. That role didn’t change.
The final union shows the same split even more clearly. In one interpretation, the pool stores ProcessBilled. In the other, the same bytes carry AllocatorBackTraceIndex and PoolTagHash. This is not backend geometry. It is accounting, observability, and pool-facing bookkeeping.
ProcessBilled is also a good example of modern hardening. The billed-process pointer still matters for quota-charged allocations, but it is not left in plain form. The public formula is:
1
ProcessBilled = EPROCESS_PTR ^ ExpPoolQuotaCookie ^ CHUNK_ADDR
Segment Allocation And Large Allocations
For sizes beyond the small-allocation world, the allocator stops treating the request as one block inside an LFH or VS subsegment and starts managing it more directly through the segment layer.
In the routing model used earlier, this is the branch above VS and below the large-allocation threshold. The structures that matter here are the same ones that already described segment geometry:
_HEAP_SEG_CONTEXT_HEAP_PAGE_SEGMENT_HEAP_PAGE_RANGE_DESCRIPTOR
That is the key difference with LFH and VS. LFH is organized around buckets and subsegments. VS is organized around chunk headers, free trees, and VS subsegments. Direct segment allocation is organized around ranges. Once the pointer has been associated with the correct SegContext, and the correct range descriptor has been recovered, most of the useful geometry is already visible there.
This is also where the two segment contexts stop being a descriptive convenience and become part of allocator behavior. The first context gives the heap a finer-grained view of memory. The second switches to much larger units and much larger segments. In the routing model used in this post, direct segment allocation is the branch that uses that coarser segment-managed world before the request becomes large enough to leave ordinary heap-managed ranges altogether.
Unlike the documented LFH and VS paths, this post still does not assert a fully characterized local block layout for direct segment allocation. What is confirmed is narrower and still important: once the request has moved beyond the VS world, there is no local POOL_HEADER layout of the same kind as the documented LFH and VS small-allocation paths. The useful geometry is carried by the surrounding segment metadata, not by a documented small-allocation-style local chunk header.

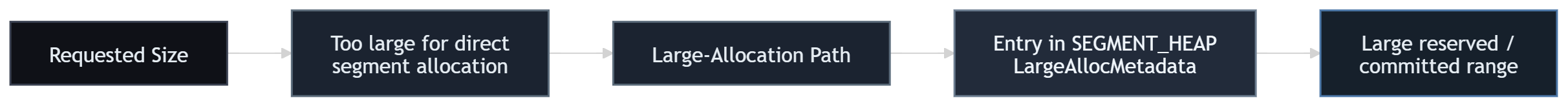

Large allocations are the last branch. Once the request crosses the ordinary segment-managed range (>8 MB), the heap stops trying to represent it as one more managed range inside the normal segment contexts and switches to dedicated large-allocation bookkeeping.
Those fields are already visible in _SEGMENT_HEAP:
1
2
3
4
5
_SEGMENT_HEAP
-> LargeMetadataLock
-> LargeAllocMetadata
-> LargeReservedPages
-> LargeCommittedPages
If the allocation-tracking logic says a pointer belongs to the large path, the parser should not start from SegContexts[0], SegContexts[1], LFH, or VS. The right starting point is the large-allocation metadata carried by the heap root itself.
Dynamic Lookaside
Dynamic Lookaside is the pool’s own short-term reuse layer. It is not the old driver-managed lookaside model, and it does not replace LFH, VS, or the segment layer. It sits above them and can intercept frees for a subset of sizes.
As we saw previous sections, on 25H2 it is exposed at the pool-node layer through _EX_HEAP_POOL_NODE.Lookasides[2]. The controller is _RTL_DYNAMIC_LOOKASIDE, and each active size bucket is an _RTL_LOOKASIDE:
1
2
3
4
5
6
7
8
//0x1040 bytes (sizeof)
struct _RTL_DYNAMIC_LOOKASIDE
{
ULONGLONG EnabledBucketBitmap; //0x0
ULONG BucketCount; //0x8
ULONG ActiveBucketCount; //0xc
struct _RTL_LOOKASIDE Buckets[64]; //0x40
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
//0x40 bytes (sizeof)
struct _RTL_LOOKASIDE
{
union _SLIST_HEADER ListHead; //0x0
USHORT Depth; //0x10
USHORT MaximumDepth; //0x12
ULONG TotalAllocates; //0x14
ULONG AllocateMisses; //0x18
ULONG TotalFrees; //0x1c
ULONG FreeMisses; //0x20
ULONG LastTotalAllocates; //0x24
ULONG LastAllocateMisses; //0x28
ULONG LastTotalFrees; //0x2c
};
EnabledBucketBitmap, BucketCount, ActiveBucketCount, and Buckets[64] already show the important property: not every possible bucket is active at the same time. ListHead in _RTL_LOOKASIDE is an _SLIST_HEADER, so cached entries are kept in a lock-free singly linked list. Depth, MaximumDepth, and the allocate/free counters expose the policy inputs the rebalance logic needs.
While the block is in lookaside, it has not yet rejoined the ordinary backend free structures. An LFH block is still an LFH block, and a VS block is still a VS block, but the next reuse may come from lookaside before the backend sees it again.
The public size coverage is a middle band of the smaller-allocation world:
| Free-list buckets | Allocation size | Granularity |
|---|---|---|
1-32 | 512 B - 1024 B | 16 B |
33-48 | 1025 B - 2048 B | 64 B |
49-64 | 2049 B - 3967 B | 128 B |
Different writeups round those boundaries slightly differently depending on whether they are speaking about requested size, pool-visible size, or allocator-rounded size. The stable point is that Dynamic Lookaside only covers a middle slice of the smaller allocation range.
Bucket selection is driven by POOL_HEADER.BlockSize. That is one of the clearest examples of the modern split between pool-facing and backend-facing metadata: backend ownership lives elsewhere, but the local pool header still influences short-term caching.
The allocation side mirrors the free side:
The mechanism is dynamic in the literal sense. The 25H2 layout already shows that through EnabledBucketBitmap and ActiveBucketCount, and the public material describes periodic rebalancing based on recent usage, with depth adjusted over time.
The practical consequence is simple: a free does not always mean immediate backend visibility. For some sizes, short-term reuse is decided by Dynamic Lookaside first, and only later by the ordinary LFH, VS, or segment-managed free path.
Part V — Security Boundaries And Reading Strategy
Hardening Patterns In The Modern Design
The modern pool is not hardened by one mitigation. It is hardened by a repeated design choice: keep as little useful allocator meaning as possible in plain, local, directly forgeable metadata.
In the classical pool, a large part of the allocator could be reconstructed from one header and the bytes around it. In the modern design, that meaning is pushed outward, encoded, validated, or delayed behind extra layers of policy.
Move geometry out of the local chunk. LFH block geometry lives in the bucket and the LFH subsegment. Direct segment allocation is described by _HEAP_PAGE_SEGMENT and _HEAP_PAGE_RANGE_DESCRIPTOR. Even in VS, where chunk-local geometry still exists, it only becomes meaningful once the VS subsegment and the surrounding VS state are recovered. A local overwrite no longer comes with a full local model of the allocator.
Encode what still has to remain local. The exact formulas vary by field and build, but the pattern is stable:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
EncodedSegmentSignature
= SegmentBase
^ SegContext
^ heap-global secret material
^ constant
DecodedVsChunkHeader
= EncodedVsChunkHeader
^ HeapKey
^ ChunkHeaderAddress
DecodedBlockOffsets
= EncodedBlockOffsets
^ LfhEncodeKey
^ (SubsegmentAddress >> 12)
ProcessBilled
= EPROCESS_PTR
^ ExpPoolQuotaCookie
^ CHUNK_ADDR
EncodedCallbacks
= PlainCallbacks
^ heap-specific key material
^ ContextAddress
VS still needs a chunk header. LFH still needs encoded block offsets. POOL_HEADER still needs to carry pool-facing state. Modern Windows does not remove those fields; it makes them harder to reuse as plain attacker-controlled metadata.
Validate ownership instead of trusting raw pointers. _HEAP_PAGE_SEGMENT.Signature, subsegment signatures, encoded callback fields, and encoded ProcessBilled all follow the same direction. The allocator increasingly wants metadata to prove that it belongs to a particular context, not merely to look pointer-shaped.
Prefer detect-and-stop over silently walking corruption. Segment-heap-family behavior consistently moves in that direction for lists and trees. The exact outward behavior should be read as a family trait unless it has been re-verified on a specific kernel path, but the architectural point is clear: once metadata stops making sense, continuing to walk it is no longer the preferred policy.
Add indirection to reuse. LFH does not reuse blocks in the old simple linear style. Dynamic Lookaside adds another layer between free and reuse. More broadly, modern reuse is less local and less deterministic than it used to be. That matters even before corruption, because neighboring placement and immediate reuse become harder to predict from local state alone.
Harden the pool surface as well as the internals. ExAllocatePool2 zeroes memory by default. NonPagedPoolNx makes non-executable nonpaged memory the normal case. These are not backend metadata tricks, but they are part of the same defensive model: reduce useful residual state and reduce what a successful overwrite can immediately become.
Taken together, these patterns change what it means to analyze a pool allocation. In the classical model, a chunk header and a nearby page dump often got most of the way. In the modern model, the same analysis usually starts by recovering a heap root, a node, a segment context, a range descriptor, a backend, and whatever encoded or validated metadata that backend depends on.
That is the hardening lesson of the modern pool. The allocator did not become harder because one field was XORed with one cookie. It became harder because geometry moved outward, local metadata stopped being plain, ownership became something to validate, reuse became less direct, and the pool contract itself became stricter.
Secure Pool And Private Pools
The manager state already showed that the pool subsystem is broader than the four ordinary shared heaps per node. _EX_POOL_HEAP_MANAGER_STATE also tracks dedicated pool-instance state through fields such as PrivatePools[2], PrivatePoolListLock, and PrivatePoolContextCookie.
That is the right place to separate three categories:
- ordinary shared heaps exposed through
PoolNode[n].Heaps[4] - private pool instances created for one consumer
- secure pool instances, which add a much stronger policy boundary
The public API reflects the same split. Pool instances are created and destroyed through ExCreatePool and ExDestroyPool. On the allocation side, ExAllocatePool3 matters because its POOL_EXTENDED_PARAMETER mechanism can carry secure-pool-specific parameters. On the free side, ExFreePool2 can carry the extra metadata needed to free or validate those allocations correctly.
Private pools are the simpler case. The important point is not a different chunk layout. It is that the unit of isolation changes. Instead of saying “this allocation belongs to the ordinary paged or nonpaged shared heap,” the more accurate statement becomes “this allocation belongs to a dedicated pool instance.” That lets the kernel attach accounting, lifetime, destruction, and policy to the pool instance itself.
The safe claim here is at the manager/API level. The structures and APIs clearly show that private pools exist as first-class pool instances. What this post does not claim, without additional reversing, is the exact internal backend path once a private-pool allocation is being serviced.
Secure pool is the stronger variant. In Yarden Shafir’s material it is described as managed by the secure kernel and read-only to ordinary kernel code, while still following the same broad segment-heap design language as the normal kernel pools. That makes it more than “private pool with another flag,” but it also means it does not need a completely separate allocator model to be understood at a high level.
This topic touches the wider Windows trust model built around VBS and VTLs. That wider architecture matters, but it is outside the scope of this post. The allocator-relevant point is narrower: secure pool sits behind a stronger boundary than the ordinary shared heaps and the ordinary private-pool path.
That stronger boundary changes what the familiar mechanisms mean. Encoded metadata, validation, cookies, and pool-instance identity are no longer only hardening details inside one allocator. They become part of the contract between normal-kernel callers and a more protected pool instance.
ExSecurePoolValidate is the cleanest example. Secure pool is not only about allocating protected memory; it is also about validating that the supplied pool instance, header content, and ownership information all match. That fits the same design direction described in the previous section: prefer recoverable ownership and validation over trust in plain local metadata.
Because secure pool still uses the same broad design family, it also inherits some of the same structural ingredients: heap roots, segment geometry, backend machinery, and callback-related state. That is why secure pool has historically been interesting not only as a policy boundary, but also as a place where ordinary-looking allocator structures could still become cross-boundary information sources.
How To Reason About The Modern Pool
To conclude the post, let’s review the steps for interpreting the information:
If the starting point is an allocation request, the first questions are still pool-facing. Is the memory paged or nonpaged? Is it NX? Is quota involved? Is the request going to an ordinary shared heap, a private pool instance, or a secure path? Those questions decide which part of the manager state the request can reach.
If the starting point is an address, the first question is ownership. Does the pointer belong to a large allocation, a segment-managed range, LFH, or VS? In practice that means thinking from the manager layer downward: node, heap family, large-versus-segment-managed classification, then SegContexts[0] versus SegContexts[1], then range descriptors, and only after that the backend-specific structures.
This is why it helps to keep pool-facing metadata separate from allocator-facing metadata. POOL_HEADER belongs to the first category. It still answers real questions, but they are pool questions: tag, type, quota-related state, short-term caching inputs such as BlockSize, and local bookkeeping. The structures that explain ownership and reuse live elsewhere: LFH buckets and subsegments, VS chunk and subsegment state, segment descriptors, large-allocation metadata, and the manager’s classification layer.
The same applies to size. In the modern pool, size is still central, but it is no longer destiny by itself. Size helps route the request into a backend family. After that, the actual path may still depend on heap-local state such as LFH bucket activation or Dynamic Lookaside activity. Two allocations of the same size can behave differently because they belong to different heaps, because one bucket is active and another is not, or because one free path is temporarily short-circuited by lookaside caching.
A free also has to be read differently. “Freed” and “immediately visible in the backend’s ordinary free state” are no longer synonyms. Dynamic Lookaside is the clearest example, but not the only one. The useful question is no longer just “was this freed?” but “which layer will observe that free first?”
For practical analysis, the highest-value questions are usually these:
- What routed this allocation here?
- What structure actually owns it?
- Which metadata is still local?
- Which metadata is encoded or indirect?
- Which layer controls short-term reuse?
The main lesson of the modern pool is not that it became impossible to read. It is that it became impossible to read locally first.
Conclusion
That was a heavy read, wasn’t it?
I know this post ended up being long, but I made my best effort to cover the topic from a broad angle in the most structured and clearly explained way I could. Writing is not really my strongest point, and it is definitely not the part I enjoy most, but I think the result came out pretty well. At the very least, I am happy with how it turned out.
If you made it this far, I hope the post was useful. That was the whole point of writing it: to turn a scattered set of sources, notes, and debugging sessions into something more coherent and easier to learn from.
And if you noticed any mistake, any weak assumption, or anything that should be corrected or clarified, I would genuinely appreciate it if you let me know. I would much rather improve the model than leave something wrong in place. I hate doing things halfway :)
Bibliography
This post would not exist without the public research, documentation, and reverse-engineering work listed below. I am very grateful to their authors for publishing it.
- Windows Internals
- Tarjei Mandt, Kernel Pool Exploitation on Windows 7
- Mark Vincent Yason, Windows 10 Segment Heap Internals
- Corentin Bayet and Paul Fariello, Pool Overflow Exploitation Since Windows 10 19H1
- Yarden Shafir, Windows Heap-Backed Pool: The Good, the Bad, and the Encoded
That’s all for now. Hope you found this useful! And remember,
